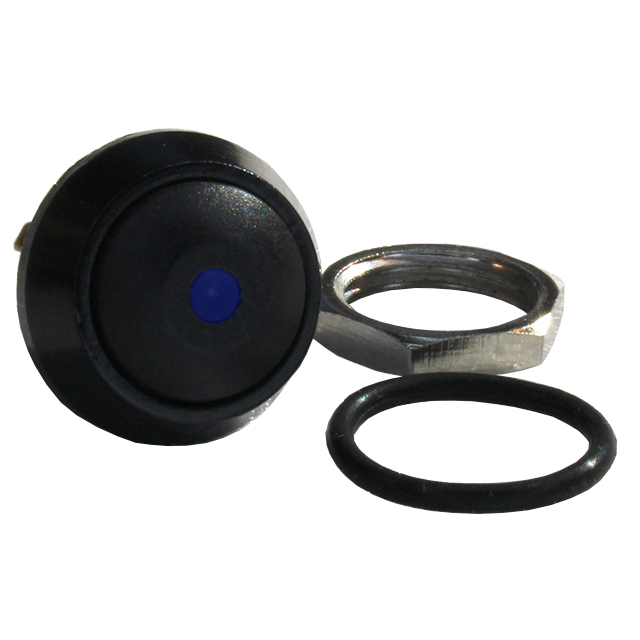

Specification	EH12NLB2BB

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPST-NO
Color	Blue
Color - Actuator/Cap	Black
Current Rating	2 A
Electrical Life (Cycles)	200000
Illumination Type	LED
Illumination Voltage (Nominal)	3.3 VDC
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	12 mm
Panel Cutout Shape	Circular
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Anti-Vandal
Voltage Rating - DC	48 V

EH12NLB2 Series

Part	Current Rating	Actuator Type	Color - Actuator/Cap	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Illumination Type	Color	Circuit	Actuator Marking	Type	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating - DC	Switch Function	Mounting Type	Panel Cutout Diameter	Panel Cutout Shape	Illumination Voltage (Nominal)	Electrical Life (Cycles)	Mechanical Life (Cycles)
CIT Relay and Switch EH12NLB2BB	2 A	Button Round	Black	70 °C	-20 °C	Solder Lug	LED	Blue	SPST-NO	No Marking	Anti-Vandal Illuminated	Dust Tight Waterproof	IP67	48 V	Off-Mom	Front Panel Mount	12 mm	Circular	3.3 VDC	200000	500000 Cycles
