MS3112E8-3S

Active

ITT Cannon, LLC

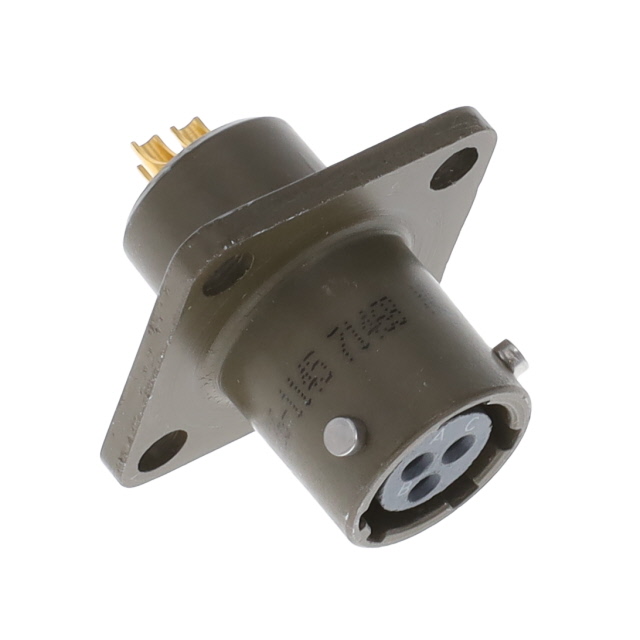

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 3 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3112E8-3S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 3 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E8-3S

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	8-3
Voltage Rating	600 VAC, 850 V

MS3112E8 Series

Part	Contact Finish - Mating	Current Rating (Amps)	Mounting Feature	Shell Size - Insert	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Fastening Type	Ingress Protection	Orientation	Voltage Rating	Shell Finish	Connector Type	Shell Material
ITT Cannon, LLC MS3112E8-3S	Gold	7.5 A	Flange	8-3	Metal	1.27 µm	50 µin	-55 °C	125 °C	Olive Drab	Bayonet Lock	Environment Resistant	N	600 VAC 850 V	Olive Drab Cadmium	Receptacle Female Sockets	Aluminum Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.53
		1	$ 35.89
		10	$ 31.43
		10	$ 32.90
		25	$ 30.07
		25	$ 29.84
		50	$ 27.78
		100	$ 25.91
		250	$ 23.71

Description

General part information

MS3112E8 Series
