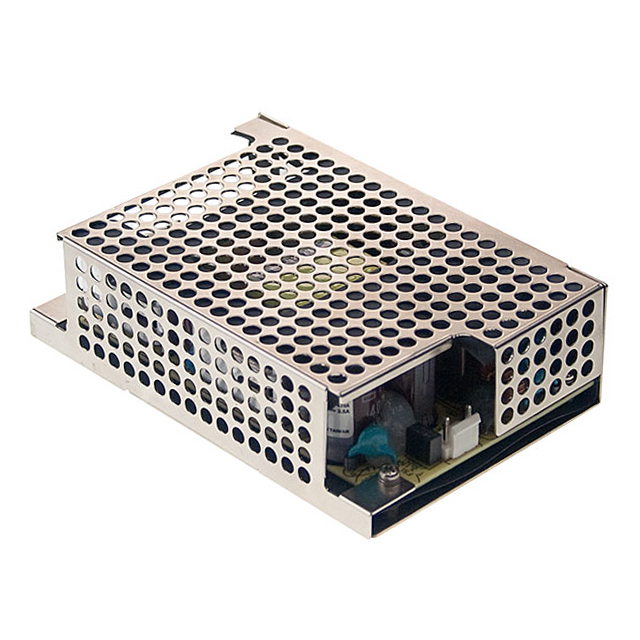

PSC-100B-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27.6V 27.6V 101W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27.6V 27.6V 101W

Technical Specifications

Parameters and characteristics for this part

Specification	PSC-100B-C

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	2.4 A
Current - Output 2	1.25 A
Efficiency	88 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	101 W
Size / Dimension [x]	5.12 "
Size / Dimension [x]	130 mm
Size / Dimension [y]	85 mm
Size / Dimension [y]	3.35 in
Size / Dimension [z]	1.46 "
Size / Dimension [z]	37 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	27.6 V
Voltage - Output 2	27.6 V

Part	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Features	Approval Agency	Mounting Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 2	Efficiency	Current - Output 1	Type	Applications	Minimum Load Required	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]
MEAN WELL USA Inc. PSC-100B-C	27.6 V	3000 V	2	Adjustable Output Universal Input	CB CE cURus TUV	Chassis Mount	101 W	1.46 "	5.12 "	85 mm	130 mm	37 mm	3.35 in	90 VAC 127 VDC	264 VAC 370 VDC	1.25 A	88 %	2.4 A	Enclosed	ITE (Commercial)		27.6 V	-20 °C	70 °C
MEAN WELL USA Inc. PSC-100B	27.6 V	3000 V	2	Adjustable Output Universal Input	CB CE cURus TUV	Chassis Mount	101 W	1.22 in	5 in	76.2 mm	127 mm	31 mm	3 "	90 VAC 127 VDC	264 VAC 370 VDC	1.25 A	88 %	2.4 A	Open Frame	ITE (Commercial)		27.6 V	-20 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 27.6V 27.6V 90 ~ 264 VAC, 127 ~ 370 VDC Input
