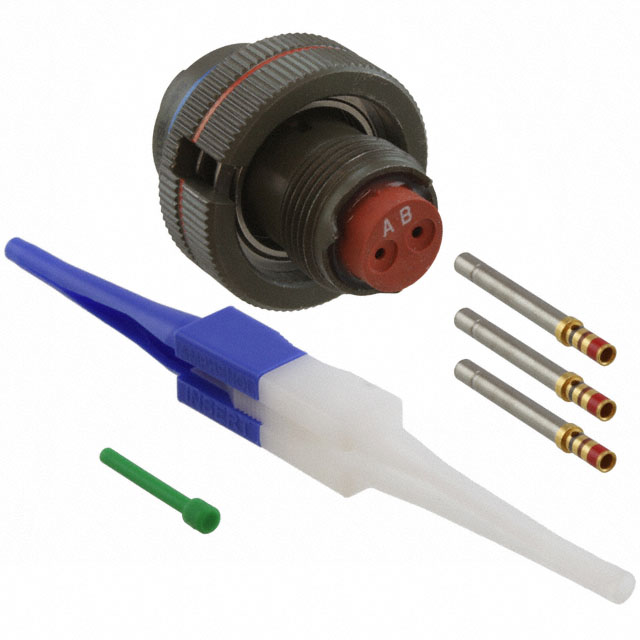

MS3459W10SL-4S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3459W10SL-4S

Applications	Aviation, Military, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Fluid Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	10SL-4
Shielding	Unshielded
Termination	Crimp

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Ingress Protection	Connector Type	Mounting Type	Shielding	Primary Material	Termination	Number of Positions	Shell Material	Shell Size - Insert	Applications	Orientation	Features	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Contact Material	Qualification	Shell Finish
Amphenol Aerospace Operations MS3459W10SL-4S	-55 °C	347 °F	Gold	Fluid Resistant	Female Sockets Plug	Free Hanging (In-Line)	Unshielded	Metal	Crimp	2	Aluminum	10SL-4	Automotive Aviation Military	N	Coupling Nut Self Locking	Military	1.27 µm	50 µin	Olive Drab	Copper Alloy	MIL-DTL-5015	Olive Drab Cadmium

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Plug, Female Sockets Crimp
