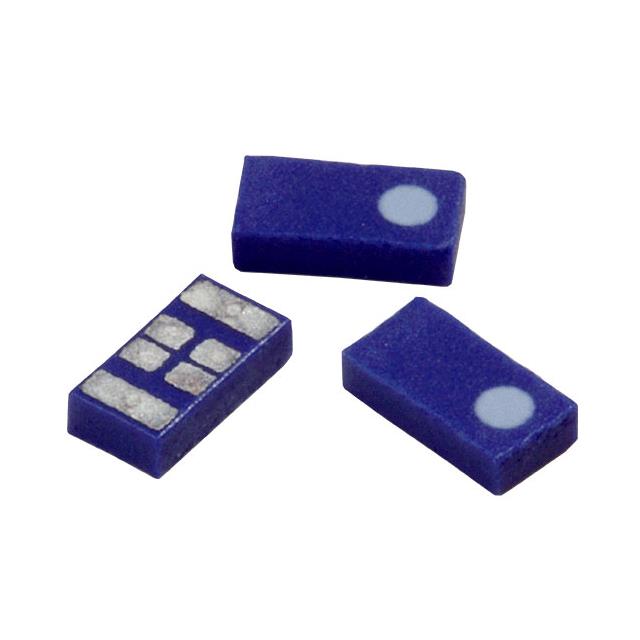

ANT1608LL14R2460A

Active

Pulse Electronics

ANT 2.4/6GHZ WIFI 6 2.4G/5-7G

Search across all available documentation for this part.

Active

Pulse Electronics

ANT 2.4/6GHZ WIFI 6 2.4G/5-7G

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT1608LL14R2460A	ANT1606 Series

Antenna Type	Chip	Chip
Applications	Wi-Fi 6E	Wi-Fi, ISM, Wi-Fi 6E, Bluetooth, Zigbee™
Frequency (Center/Band)	6.1375 GHz, 2.4 GHz	2.4 - 6.1375 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range [Max]	7.125 GHz	2.5 - 7.125 GHz
Frequency Range [Min]	5.15 GHz	2.4 - 5.15 GHz
Gain	3.65 dBi, 3.69 dBi	2 - 3.69 dBi
Height (Max) [Max] [z]	0.016 in	0.016 in
Height (Max) [Max] [z]	0.4 mm	0.4 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	2	1 - 2
Power - Max [Max]	1 W	1 W
Return Loss	7 dB	7 dB
RF Family/Standard	WiFi	WiFi
Termination	Solder	Solder
VSWR	-	6

RF ANT 2.45GHZ/5.5GHZ CHIP SLD

Part	Termination	Number of Bands	Frequency (Center/Band)	Antenna Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Power - Max [Max]	Applications	Mounting Type	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	Return Loss	Frequency Range [Max]	Frequency Range [Min]	VSWR
Pulse Electronics ANT1608LL14R2455A	Solder	2	2.45 GHz, 5.5 GHz	Chip	0.016 in	0.4 mm	1 W	ISM, Wi-Fi	Surface Mount	3.11 dBi, 3.43 dBi	4 GHz	2 GHz	3 GHz
Pulse Electronics ANT1608LL14R2460A	Solder	2	2.4 GHz, 6.1375 GHz	Chip	0.016 in	0.4 mm	1 W	Wi-Fi 6E	Surface Mount	3.65 dBi, 3.69 dBi	4 GHz	2 GHz	3 GHz	WiFi	7 dB	7.125 GHz	5.15 GHz
Pulse Electronics ANT1608LL14R2400A	Solder	1		Chip	0.016 in	0.4 mm	1 W	Bluetooth, ISM, Wi-Fi, Zigbee™	Surface Mount	2 dBic						2.5 GHz	2.4 GHz	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Wi-Fi 6E Chip Solder Surface Mount
