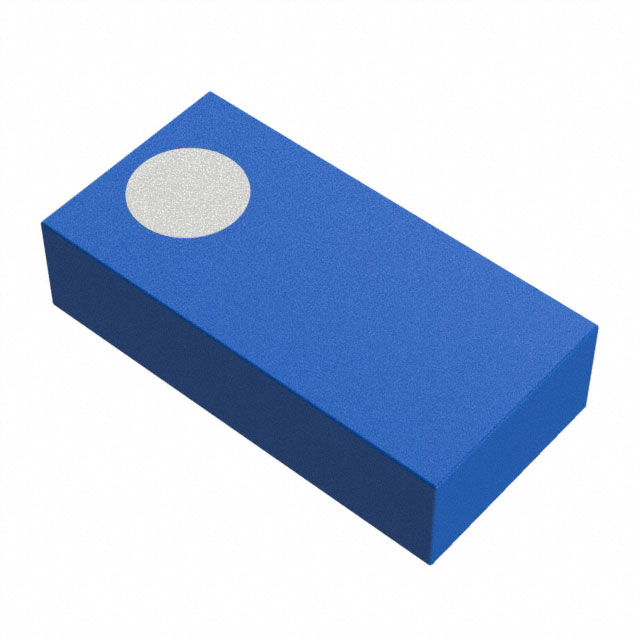

ANT1608LL14R2400A

Active

Pulse Electronics

RF ANT 2.45GHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 2.45GHZ CHIP SOLDER SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT1608LL14R2400A	ANT1606 Series

Antenna Type	Chip	Chip
Applications	Wi-Fi, Bluetooth, ISM, Zigbee™	Wi-Fi, ISM, Wi-Fi 6E, Bluetooth, Zigbee™
Frequency (Center/Band)	-	2.4 - 6.1375 GHz
Frequency Group	-	4 GHz
Frequency Group	-	2 GHz
Frequency Group	-	3 GHz
Frequency Range [Max]	2.5 GHz	2.5 - 7.125 GHz
Frequency Range [Min]	2.4 GHz	2.4 - 5.15 GHz
Gain	2 dBic	2 - 3.69 dBi
Height (Max) [Max] [z]	0.016 in	0.016 in
Height (Max) [Max] [z]	0.4 mm	0.4 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1 - 2
Power - Max [Max]	1 W	1 W
Return Loss	-	7 dB
RF Family/Standard	-	WiFi
Termination	Solder	Solder
VSWR	6	6

RF ANT 2.45GHZ/5.5GHZ CHIP SLD

Part	Termination	Number of Bands	Frequency (Center/Band)	Antenna Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Power - Max [Max]	Applications	Mounting Type	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	Return Loss	Frequency Range [Max]	Frequency Range [Min]	VSWR
Pulse Electronics ANT1608LL14R2455A	Solder	2	2.45 GHz, 5.5 GHz	Chip	0.016 in	0.4 mm	1 W	ISM, Wi-Fi	Surface Mount	3.11 dBi, 3.43 dBi	4 GHz	2 GHz	3 GHz
Pulse Electronics ANT1608LL14R2460A	Solder	2	2.4 GHz, 6.1375 GHz	Chip	0.016 in	0.4 mm	1 W	Wi-Fi 6E	Surface Mount	3.65 dBi, 3.69 dBi	4 GHz	2 GHz	3 GHz	WiFi	7 dB	7.125 GHz	5.15 GHz
Pulse Electronics ANT1608LL14R2400A	Solder	1		Chip	0.016 in	0.4 mm	1 W	Bluetooth, ISM, Wi-Fi, Zigbee™	Surface Mount	2 dBic						2.5 GHz	2.4 GHz	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount
