SF8980-18PG-530

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF8980-18PG-530	SF8980 Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening [custom]	0.33 in	0.33 in
Cable Opening [custom]	8.38 mm	8.38 mm
Color	Black, Silver	Black, Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	18	18
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Brass	Brass
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

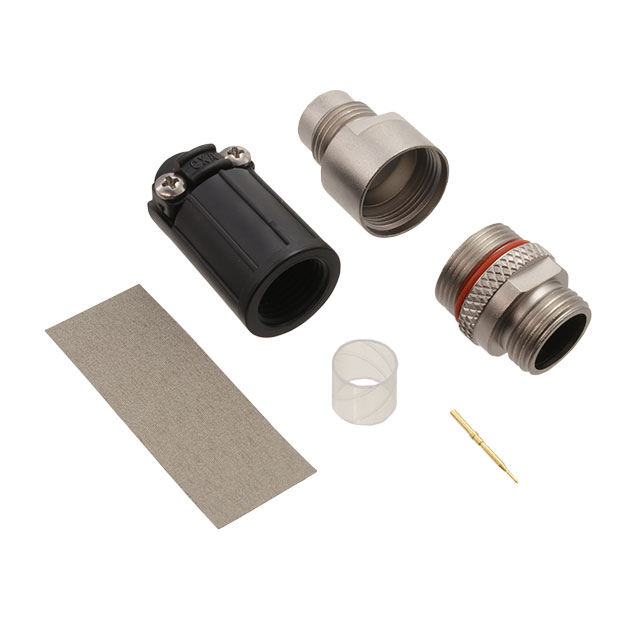

CONN RCPT MALE 18POS GOLD CRIMP

Part	Primary Material	Orientation	Shielding	Contact Finish - Mating	Contact Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Connector Type	Termination	Features	Color	Mounting Type	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Shell Material	Ingress Protection
Conxall/Switchcraft SF8980-18PG-530	Metal	Keyed	Shielded	Gold	Copper Alloy	Nylon, Polyamide (PA)	-40 °C	120 °C	Nickel	Male Pins, Receptacle	Crimp	Backshell, Cable Clamp	Black, Silver	Free Hanging (In-Line)	18	0.33 in	8.38 mm	Polybutylene Terephthalate (PBT)	Brass	IP66/IP68
Conxall/Switchcraft SF8980-18SG-530	Metal	Keyed	Shielded	Gold	Copper Alloy	Nylon, Polyamide (PA)	-40 °C	120 °C	Nickel	Receptacle, Female Sockets	Crimp	Backshell, Cable Clamp	Black, Silver	Free Hanging (In-Line)	18	0.33 in	8.38 mm	Polybutylene Terephthalate (PBT)	Brass	IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.25

General part information

18 Position Circular Connector Receptacle, Male Pins Crimp
