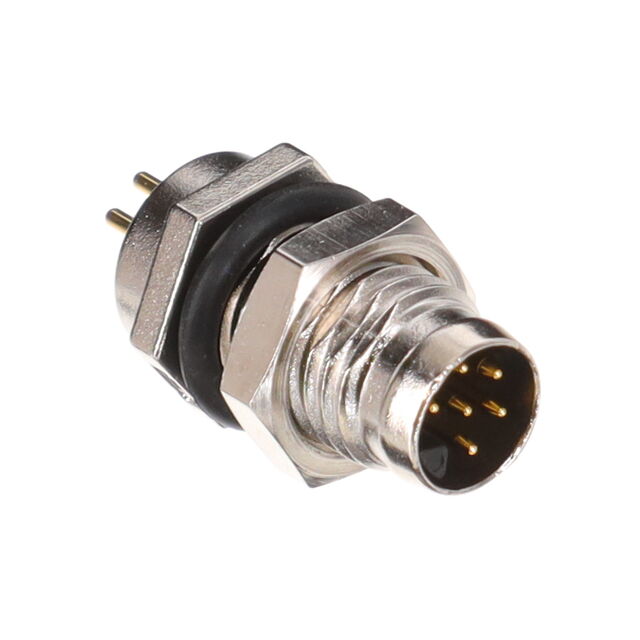

8A-06PMMP-SF7001

Active

Amphenol LTW

M8 CONN WITH KEY

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN WITH KEY

Technical Specifications

Parameters and characteristics for this part

Specification	8A-06PMMP-SF7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-6
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Current Rating (Amps)	Shell Material	Ingress Protection	Shell Size - Insert	Orientation	Shell Finish	Shielding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Voltage Rating	Connector Type	Primary Material	Color	Mounting Feature	Contact Finish - Mating	Contact Material	Insert Material	Number of Positions	Termination
Amphenol LTW 8A-06PMMP-SF7001	1.5 A	Zinc Alloy	IP67 - Dust Tight Waterproof	M8-6	Keyed	Nickel	Shielded	Panel Mount Through Hole	-40 °C	105 ░C	UL94 V-0	30 VDC	Male Pins Receptacle	Metal	Silver	Bulkhead - Front Side Nut	Gold	Copper Alloy	Polyamide (PA) Nylon Glass Filled	6	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
