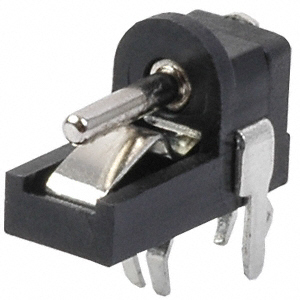

PJ-030D

Obsolete

CUI Devices

CONN POWER JACK 1.3X3.4MM

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN POWER JACK 1.3X3.4MM

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-030D

Actual Diameter [diameter]	3.4 mm, 1.3 mm
Actual Diameter [diameter]	0.134 in, 0.051 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating	Tin
Current Rating (Amps)	2 A
Features	Board Guide
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter	1.3 mm, 3.4 mm
Industry Recognized Mating Diameter	0.051 ", 0.134 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	6.5 mm
Mating Length/Depth	0.256 "
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Kinked Pin
Voltage - Rated	24 VDC

Part	Voltage - Rated	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Termination	Contact Material - Plating	Internal Switch(s)	Body Color	Number of Positions/Contacts	Mounting Type	Gender	Mating Length/Depth	Mating Length/Depth	Connector Type	Features	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Contact Material
CUI Devices PJ-030D	24 VDC	Polybutylene Terephthalate (PBT)	-25 °C	85 °C	2 A	UL94 V-0	1.3 mm 3.4 mm	0.051 " 0.134 "	Kinked Pin	Tin	Normally Closed Single Switch	Black	2 Conductors 3 Conductors	Through Hole Right Angle	Male	6.5 mm	0.256 "	Jack	Board Guide	1.3 mm 3.4 mm	0.051 in 0.134 in	Unshielded	Brass Copper Alloy
CUI Devices PJ-030D	24 VDC	Polybutylene Terephthalate (PBT)	-25 °C	85 °C	2 A	UL94 V-0	1.3 mm 3.4 mm	0.051 " 0.134 "	Kinked Pin	Tin	Normally Closed Single Switch	Black	2 Conductors 3 Conductors	Through Hole Right Angle	Male	6.5 mm	0.256 "	Jack	Board Guide	1.3 mm 3.4 mm	0.051 in 0.134 in	Unshielded	Brass Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.40mm OD (0.134") Through Hole, Right Angle
