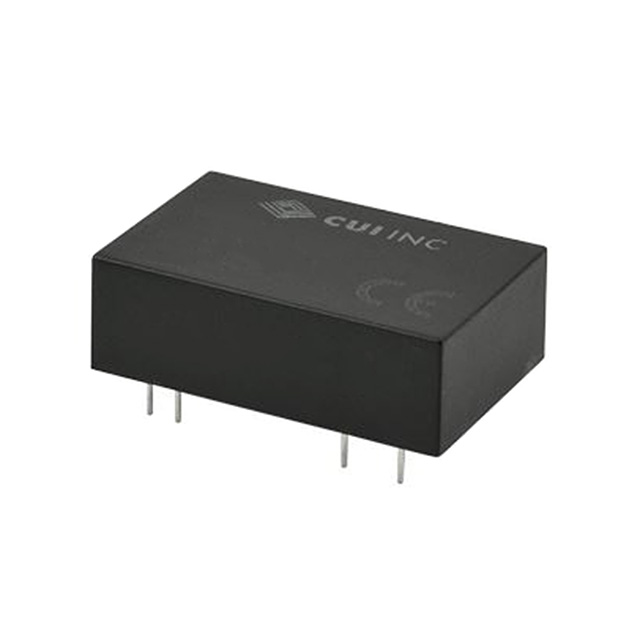

VAQE6W-Q24-D12-D
CUI Inc.
DC DC CONVERTER +/-12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
VAQE6W-Q24-D12-D
CUI Inc.
DC DC CONVERTER +/-12V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VAQE6W-Q24-D12-D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN, CB Scheme, UL, IEC |
| Current - Output (Max) | 250 mA |
| Current - Output (Max) | 250 mA |
| Efficiency | 84 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 1.24 in |
| Size / Dimension [x] | 31.6 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Standard Number | 55024, 60950-1, 55032 Class A |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
VAQE6W Series
| Part | Voltage - Isolation | Approval Agency | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Package / Case | Type | Power (Watts) | Applications | Standard Number | Mounting Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Efficiency | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 1.2 A | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 5 V | 18 V | 75 V | 83 % | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 2 | 85 °C | -40 °C | 600 mA | 24-DIP Module 8 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 5 V | 9 V | 36 V | 80 % | -5 V | ||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 400 mA | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 15 V | 9 V | 36 V | 88 % | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 500 mA | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 12 V | 18 V | 75 V | 87 % | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 667 mA | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 9 V | 9 V | 36 V | 85 % | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 2 | 85 °C | -40 °C | 24-DIP Module 8 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 15 V | 9 V | 36 V | 85 % | -15 V | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 400 mA | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 15 V | 18 V | 75 V | 88 % | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 1.2 A | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 5 V | 9 V | 36 V | ||||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 1 | 85 °C | -40 °C | 250 mA | 24-DIP Module 7 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 24 V | 18 V | 75 V | 87 % | |||
CUI Inc. | 3000 V | CB Scheme EN IEC UL | OCP OVP SCP UVLO | 1.24 in | 31.6 mm | 0.8 in | 10.2 mm | 0.4 " | 20.3 mm | 2 | 85 °C | -40 °C | 24-DIP Module 8 Leads | Isolated Module | 6 W | ITE (Commercial) | 55024 55032 Class A 60950-1 | Through Hole | 12 V | 9 V | 36 V | 84 % | -12 V | 250 mA | 250 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 22.26 | |
| 5 | $ 22.08 | |||
Description
General part information
VAQE6W Series
Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 9V - 36V Input
