9579-1"X36YD

Active

3M (TC)

TAPE DBL SIDED WHITE 1"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE DBL SIDED WHITE 1"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	9579-1"X36YD

Adhesive	Acrylic, 760
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Double Coated, Double Sided
Temperature Range	120 °F, 49 °C
Thickness	9 mils
Thickness	0.009 in
Thickness	0.229 mm
Thickness - Adhesive	0.003 "
Thickness - Adhesive	0.076 mm
Thickness - Adhesive	3 mils
Thickness - Backing, Carrier	0.006 in
Thickness - Backing, Carrier	6 mils
Thickness - Backing, Carrier	0.152 mm
Usage	General Purpose, Splicing, Adhesion
Width [x]	25.4 mm
Width [x]	1 in

Part	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life Start	Width	Width	Width	Usage	Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Length	Length	Length	Thickness	Thickness	Thickness	Temperature Range	Tape Type	Width [y]	Width [y]	Width [x]	Width [x]
3M (TC) 9579-3/4"X36YD	18 Months	0.006 in	6 mils	0.152 mm	Date of Manufacture	0.75 in	19.05 mm	0.75 in	Adhesion General Purpose Splicing	Acrylic 760	70 °F	21 °C	0.003 "	0.076 mm	3 mils	White	36 yd	32.9 m	108 ft	9 mils	0.009 in	0.229 mm	49 °C 120 °F	Double Coated Double Sided
3M (TC) 9579-2"X36YD	18 Months	0.006 in	6 mils	0.152 mm	Date of Manufacture				Adhesion General Purpose Splicing	Acrylic 760	70 °F	21 °C	0.003 "	0.076 mm	3 mils	White	36 yd	32.9 m	108 ft	9 mils	0.009 in	0.229 mm	49 °C 120 °F	Double Coated Double Sided	2 "	50.8 mm
3M (TC) 9579-1"X36YD	18 Months	0.006 in	6 mils	0.152 mm	Date of Manufacture				Adhesion General Purpose Splicing	Acrylic 760	70 °F	21 °C	0.003 "	0.076 mm	3 mils	White	36 yd	32.9 m	108 ft	9 mils	0.009 in	0.229 mm	49 °C 120 °F	Double Coated Double Sided			25.4 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

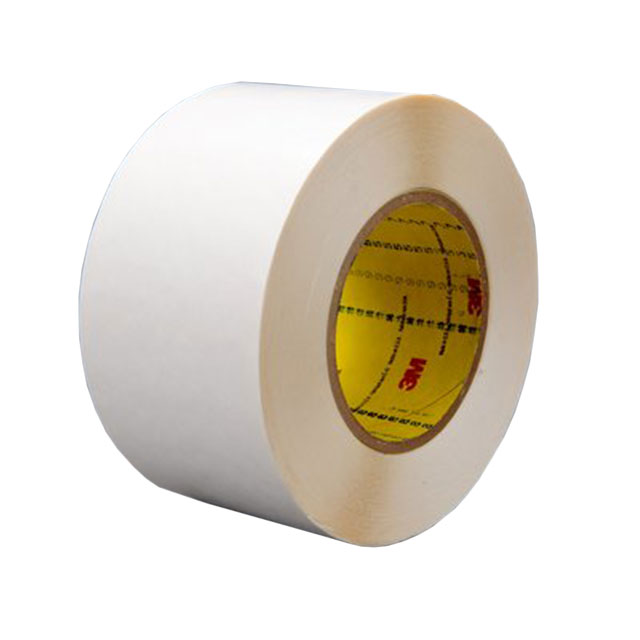

Double Coated, Double Sided Tape Acrylic, 760 Adhesive White 1.00" (25.40mm) X 108' (32.9m) 36 yds

Technical documentation and resources
