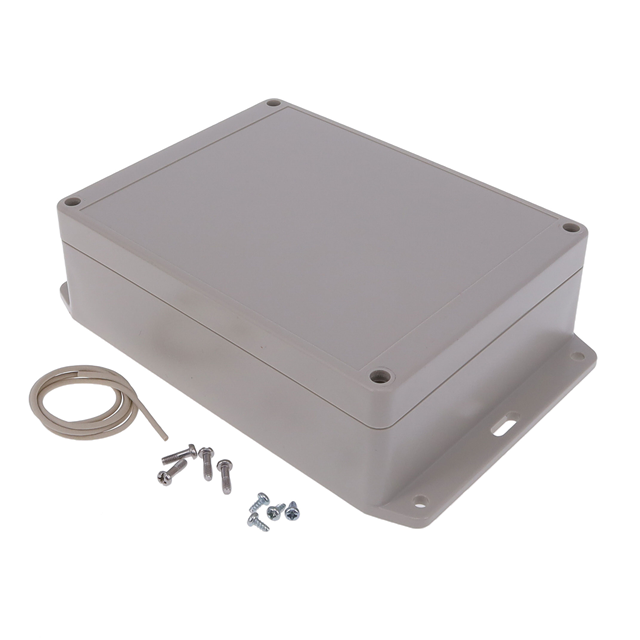

RP1235BF

Active

Hammond Manufacturing

BOX ABS GRAY 7.67"L X 4.94"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS GRAY 7.67"L X 4.94"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1235BF

Area (L x W)	37.8 in²
Area (L x W)	244 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	194.82 mm
Size / Dimension [x]	7.67 in
Size / Dimension [y]	4.94 in
Size / Dimension [y]	125.48 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material Flammability Rating	Thickness	Thickness	Container Type	Height [z]	Height [z]	Design	Area (L x W)	Area (L x W)	Material	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing RP1235BFC	UL94 HB	2.03 mm	0.08 "	Box	2.17 in	55.12 mm	Cover Included	37.8 in²	244 cm²	ABS	Clear Cover/Door Gray	194.82 mm	4.94 in	7.67 in	125.48 mm
Hammond Manufacturing RP1235C	UL94 HB	2.03 mm	0.08 "	Box	2.17 in	55.12 mm	Cover Included	32.2 in˛	208 cm˛	ABS	Clear Cover/Door Gray	165.61 mm	4.94 in	6.52 in	125.48 mm
Hammond Manufacturing RP1235BF	UL94 HB	2.03 mm	0.08 "	Box	2.17 in	55.12 mm	Cover Included	37.8 in²	244 cm²	ABS	Gray	194.82 mm	4.94 in	7.67 in	125.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray Cover Included 7.670" L x 4.940" W (194.82mm x 125.48mm) X 2.170" (55.12mm)

Technical documentation and resources

No documents available
