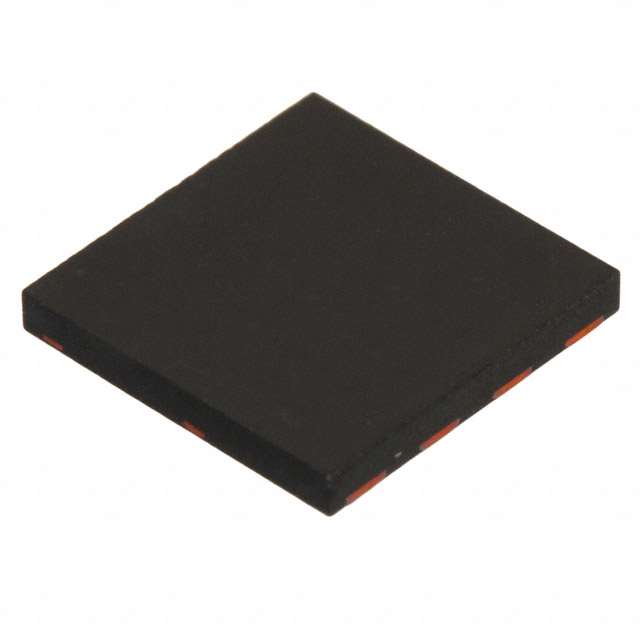

IPL60R385CPAUMA1
NRNDInfineon Technologies
COOLMOS™ CP N-CHANNEL SUPERJUNCTION MOSFET 600 V ; THINPAK 8X8 PACKAGE; 385 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
IPL60R385CPAUMA1
NRNDInfineon Technologies
COOLMOS™ CP N-CHANNEL SUPERJUNCTION MOSFET 600 V ; THINPAK 8X8 PACKAGE; 385 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPL60R385CPAUMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 9 A |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 790 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-PowerTSFN |
| Power Dissipation (Max) | 83 W |
| Rds On (Max) @ Id, Vgs [Max] | 385 mOhm |
| Supplier Device Package | PG-VSON-4 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.51 | |
| Digi-Reel® | 1 | $ 3.51 | ||
| Tape & Reel (TR) | 3000 | $ 1.12 | ||
Description
General part information
IPL60R385 Series
CoolMOS™ CP, Infineon's fifth series of CoolMOS™, is designed for hard and soft switching topologies, CCM PFC as well as PWM for ATX, notebook adapter PDP and LCD TV.
