102-920-06

Active

Amphenol RF

CONNECTOR: COAXIAL; PLUG; MALE; 1.0-2.3; CRIMPED; FOR CABLE; BRASS

Search across all available documentation for this part.

Active

Amphenol RF

CONNECTOR: COAXIAL; PLUG; MALE; 1.0-2.3; CRIMPED; FOR CABLE; BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	102-920-06

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms

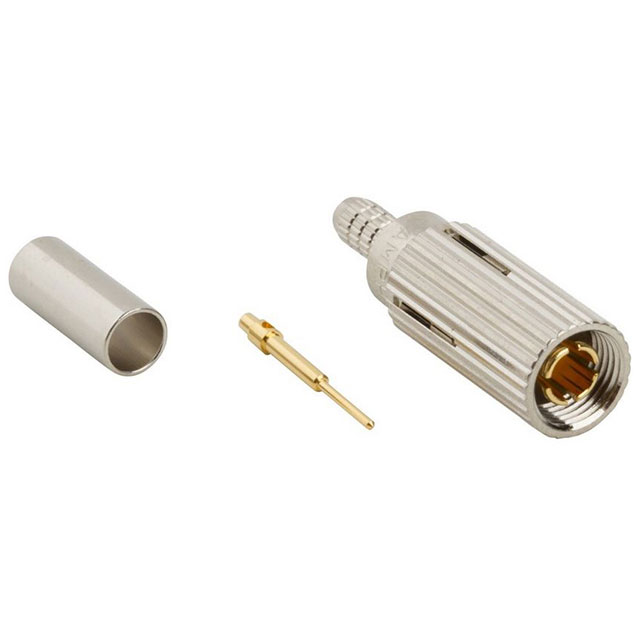

Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Number of Ports	Fastening Type	Housing Color	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Connector Type	Body Finish	Voltage Rating	Impedance	Mounting Type	Center Contact Plating	Contact Termination	Connector Style	Dielectric Material	Mating Cycles	Shield Termination	Body Material	Center Contact Material	Includes
Amphenol RF 102-799-04	1	Push-Pull	Silver	10 GHz	-40 °C	155 °C	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Male Pin Plug	Nickel	250 VDC	50 Ohms	Free Hanging (In-Line)	Gold	Solder	1.0/2.3	Polytetrafluoroethylene (PTFE)	500	Crimp	Brass	Brass
Amphenol RF 102-799-16	1	Push-Pull	Silver	10 GHz	-40 °C	155 °C	188 188A 316 LMR-100 M17/119-RG174 RG-174	Male Pin Plug	Nickel	250 VDC	50 Ohms	Free Hanging (In-Line)	Gold	Solder	1.0/2.3	Polytetrafluoroethylene (PTFE)	500	Crimp	Brass	Brass
Amphenol RF 102-799-34	1	Push-Pull	Silver	10 GHz	-40 °C	155 °C	L910/34 L910/39	Male Pin Plug	Nickel	250 VDC	50 Ohms	Free Hanging (In-Line)	Gold		1.0/2.3	Polytetrafluoroethylene (PTFE)	500	Crimp	Brass	Brass
Amphenol RF 102-920-06	1		Silver	10 GHz	-40 °C	125 °C	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Male Pin Plug	Nickel	250 VDC	50 Ohms	Free Hanging (In-Line)	Gold	Solder	1.0/2.3	Polytetrafluoroethylene (PTFE)	500	Crimp	Brass	Brass	1 Connector 1 Contact 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
