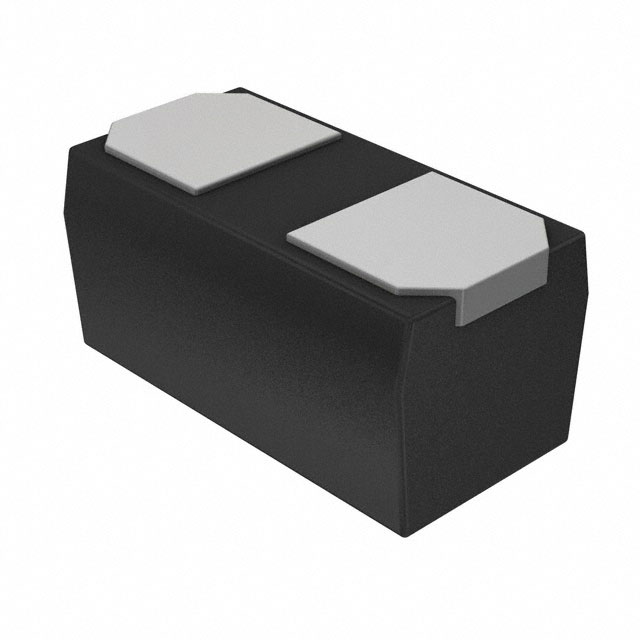

DF2B5M4SL,L3F
ActiveToshiba Semiconductor and Storage
TVS DIODE 3.6VWM 24VC SL2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF2B5M4SL,L3F
ActiveToshiba Semiconductor and Storage
TVS DIODE 3.6VWM 24VC SL2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF2B5M4SL,L3F |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.2 pF |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Power - Peak Pulse | 30 W |
| Power Line Protection | False |
| Supplier Device Package | SL2 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 4 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 24 V |
| Voltage - Reverse Standoff (Typ) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
| 10 | $ 0.18 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.30 | ||
| 10 | $ 0.18 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.07 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
| 20000 | $ 0.05 | |||
| 30000 | $ 0.04 | |||
| 50000 | $ 0.04 | |||
| 70000 | $ 0.04 | |||
| 100000 | $ 0.04 | |||
| 250000 | $ 0.04 | |||
Description
General part information
DF2B5 Series
24V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SL2
