SRF0504-302Y
ActiveBourns Inc.

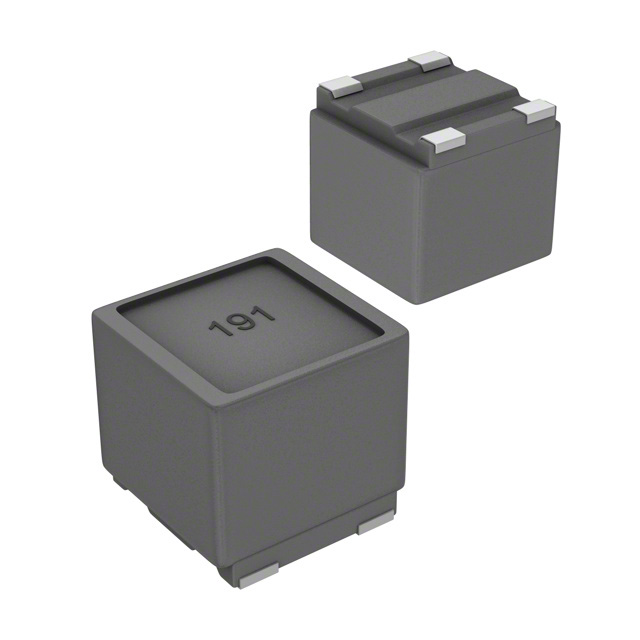

FILTER, LINE, 6 µH, SRF0504 SERIES, 3 KOHM, 500 MA, 5.2MM X 5MM X 4.8MM
Deep-Dive with AI
Search across all available documentation for this part.
SRF0504-302Y
ActiveBourns Inc.
FILTER, LINE, 6 µH, SRF0504 SERIES, 3 KOHM, 500 MA, 5.2MM X 5MM X 4.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRF0504-302Y |
|---|---|
| Current Rating (Max) [Max] | 500 mA |
| DC Resistance (DCR) (Max) [Max] | 200 mOhm |
| Height (Max) | 4.8 mm |
| Height (Max) [z] | 0.189 in |
| Impedance @ Frequency | 3 kOhms |
| Inductance @ Frequency | 6 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 0.205 in |
| Size / Dimension [x] | 5.2 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.19 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.19 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| Tape & Reel (TR) | 1000 | $ 0.66 | ||
| 2000 | $ 0.63 | |||
| 3000 | $ 0.61 | |||
| 5000 | $ 0.58 | |||
| 7000 | $ 0.57 | |||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 0.63 | |
| 2000 | $ 0.59 | |||
Description
General part information
SRF0504 Series
6 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 3 kOhms @ 100 MHz 500mA DCR 200mOhm
