EN3P4MRAPCX

Active

Switchcraft Inc.

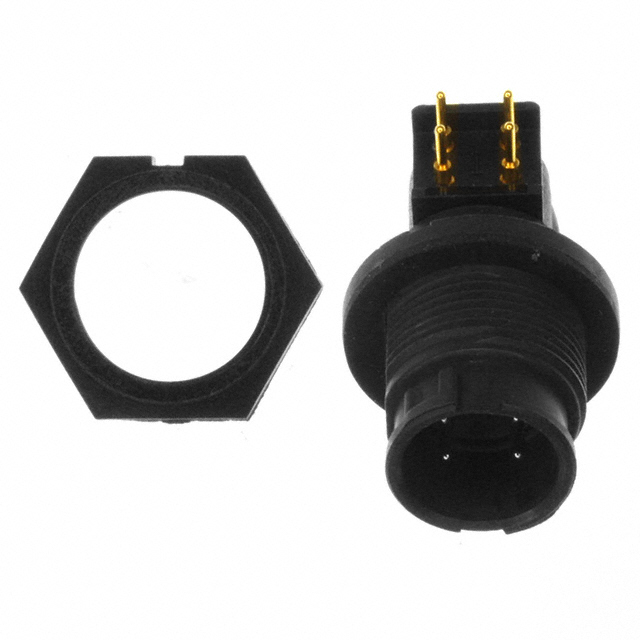

CONN RCPT MALE 4POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

EN3P4MRAPCX

Active

Switchcraft Inc.

CONN RCPT MALE 4POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.20
		10	$ 16.33
		25	$ 14.78
		50	$ 13.73
		100	$ 12.78
		300	$ 11.46
		500	$ 10.91

Description

General part information

EN3P4M Series

4 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P4MRAPCX	EN3P4M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Crimp, Circuit Board, Solder, Solder
Voltage Rating	250 VAC	250 VAC

EN3P4M Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Ingress Protection	Connector Type	Fastening Type	Primary Material	Current Rating (Amps)	Orientation	Number of Positions	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Material Flammability Rating	Contact Material	Termination	Voltage Rating	Applications	Color	Mounting Feature	Insert Material	Mounting Type
Switchcraft Inc. EN3P4MCKX	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Crimp	250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer
Switchcraft Inc. EN3P4MRAPCBW	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Circuit Board, Solder	250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P4MKX	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy		250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer
Switchcraft Inc. EN3P4MX	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy		250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer
Switchcraft Inc. EN3P4MCX	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	7.5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Crimp	250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer
Switchcraft Inc. EN3P4MRAPCBN	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Circuit Board, Solder	250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P4MRAPCX	IP66/IP68	Male Pins, Receptacle	Bayonet Lock	Plastic	5 A	Keyed	4	Unshielded	65 °C	-40 °C	Gold	UL94 V-0	Copper Alloy	Solder	250 VAC	General Purpose, Instrumentation, Marine, Medical	Black	Bulkhead - Front Side Nut	Elastomer	Panel Mount, Right Angle, Through Hole
