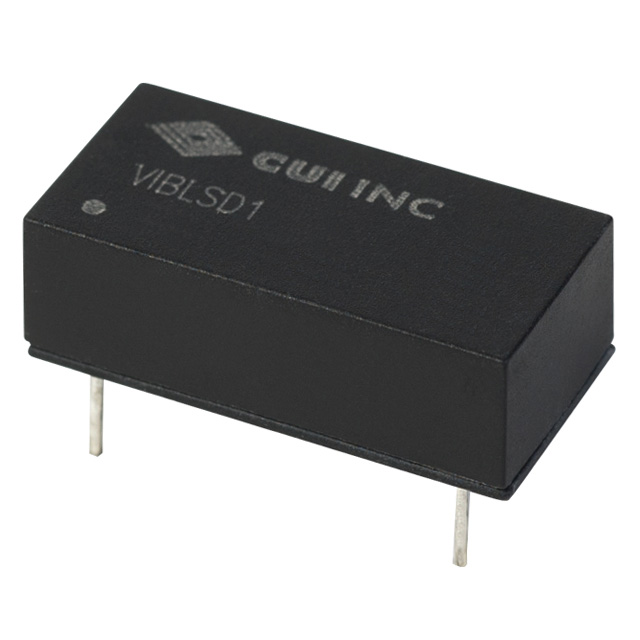

Specification	VIBLSD1-S24-S24-DIP

Applications	ITE (Commercial)
Current - Output (Max)	42 mA
Efficiency	68 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Leads
Package Name	14-DIP Module
Power (Watts)	1 W
Size / Dimension Height	0.28 in
Size / Dimension Length	0.79 in
Size / Dimension Width	0.39 in
Type	Isolated Module
Voltage - Input (Max)	25.2 V
Voltage - Input (Min)	22.8 V
Voltage - Isolation	1000 Vrms
Voltage - Output 1	24 V

VIBLSD1 Series

Part	Voltage - Input (Max)	Efficiency	Voltage - Input (Min)	Number of Outputs	Current - Output (Max)	Voltage - Isolation	Voltage - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Package Name	Package Leads	Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Applications	Power (Watts)
CUI Inc. VIBLSD1-S5-S5-DIP	5.25 V	69 %	4.75 V	1	200 mA	1000 Vrms	5 V	0.39 in	0.8 in	0.26 in	14-DIP Module	5 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S12-S5-DIP	12.6 V	69 %	11.4 V	1	150 mA	1000 Vrms	5 V	0.39 in	0.8 in	0.26 in	14-DIP Module	5 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S5-S5-SIP	5.25 V	69 %	4.75 V	1	150 mA	1000 Vrms	5 V	0.24 in	0.77 in	0.4 in	6-SIP Module	4 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S5-S24-SIP	5.25 V	68 %	4.75 V	1	42 mA	1000 Vrms	24 V	0.24 in	0.77 in	0.39 in	6-SIP Module	4 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S24-S24-DIP	25.2 V	68 %	22.8 V	1	42 mA	1000 Vrms	24 V	0.39 in	0.79 in	0.28 in	14-DIP Module	5 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S24-S5-SIP	25.2 V	70 %	22.8 V	1	200 mA	1000 Vrms	5 V	0.24 in	0.77 in	0.4 in	6-SIP Module	4 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S12-S15-DIP	12.6 V	72 %	11.4 V	1	67 mA	1000 Vrms	15 V	0.39 in	0.8 in	0.26 in	14-DIP Module	5 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S5-S12-SIP	5.25 V	71 %	4.75 V	1	83 mA	1000 Vrms	12 V	0.24 in	0.77 in	0.4 in	6-SIP Module	4 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S12-S9-SIP	12.6 V	72 %	11.4 V	1	111 mA	1000 Vrms	9 V	0.24 in	0.77 in	0.39 in	6-SIP Module	4 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
CUI Inc. VIBLSD1-S12-S15-SIP	12.6 V	72 %	11.4 V	1	67 mA	1000 Vrms	15 V	0.24 in	0.77 in	0.4 in	6-SIP Module	4 Leads	Isolated Module	SCP	-40 °C	85 °C	Through Hole	ITE (Commercial)	1 W
