J6H018862N66211

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	J6H018862N66211	A20-108 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Red, Green	Green, Red, Does Not Contain LED, Red, Green, Yellow - Green
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Orientation	90 °	90 °
Ratings	Cat5	Cat5
Shielding	Shielded	Shielded
Tab Direction	Up	Up
Termination	Solder	Solder

CONN MOD JACK 8P8C R/A SHIELDED

Part	Housing Material	Ratings	Contact Finish	Mounting Type	Number of Rows	Contact Material	Number of Positions/Contacts	Orientation	Tab Direction	Connector Type	LED Color	Contact Finish Thickness	Shielding	Number of Ports	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. A20-108-262-310	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Green, Red	Flash	Shielded	1	Solder
EDAC Inc. J6H018822N00211	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Does Not Contain LED	Flash	Shielded	1	Solder
EDAC Inc. J6H018862N66211	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Red, Green		Shielded	1	Solder	0.76 Ám	30 Áin
EDAC Inc. J6H018862N13211	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Yellow - Green		Shielded	1	Solder	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

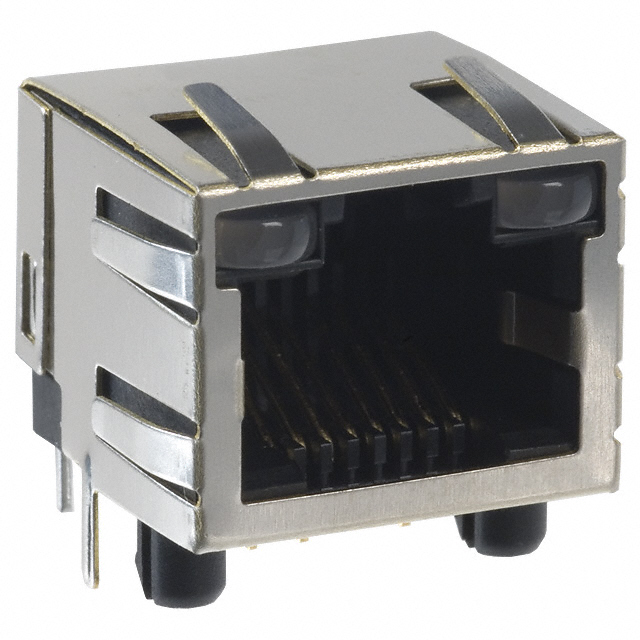

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
