A20-108-262-310

Obsolete

EDAC Inc.

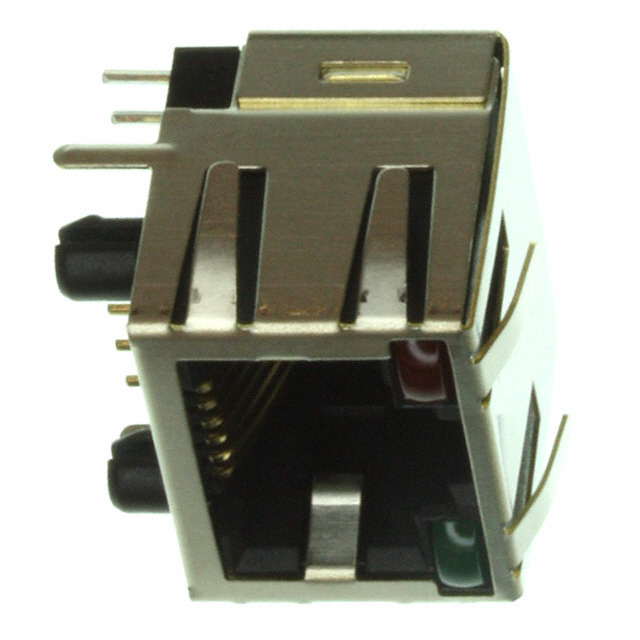

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A20-108-262-310	A20-108 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Green, Red	Green, Red, Does Not Contain LED, Red, Green, Yellow - Green
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Orientation	90 °	90 °
Ratings	Cat5	Cat5
Shielding	Shielded	Shielded
Tab Direction	Up	Up
Termination	Solder	Solder

CONN MOD JACK 8P8C R/A SHIELDED

Part	Housing Material	Ratings	Contact Finish	Mounting Type	Number of Rows	Contact Material	Number of Positions/Contacts	Orientation	Tab Direction	Connector Type	LED Color	Contact Finish Thickness	Shielding	Number of Ports	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. A20-108-262-310	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Green, Red	Flash	Shielded	1	Solder
EDAC Inc. J6H018822N00211	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Does Not Contain LED	Flash	Shielded	1	Solder
EDAC Inc. J6H018862N66211	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Red, Green		Shielded	1	Solder	0.76 Ám	30 Áin
EDAC Inc. J6H018862N13211	Polybutylene Terephthalate (PBT)	Cat5	Gold	Through Hole	1	Phosphor Bronze	8p8c (RJ45, Ethernet)	90 °	Up	Jack	Yellow - Green		Shielded	1	Solder	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
