092520100V

Active

Essentra Access Solutions

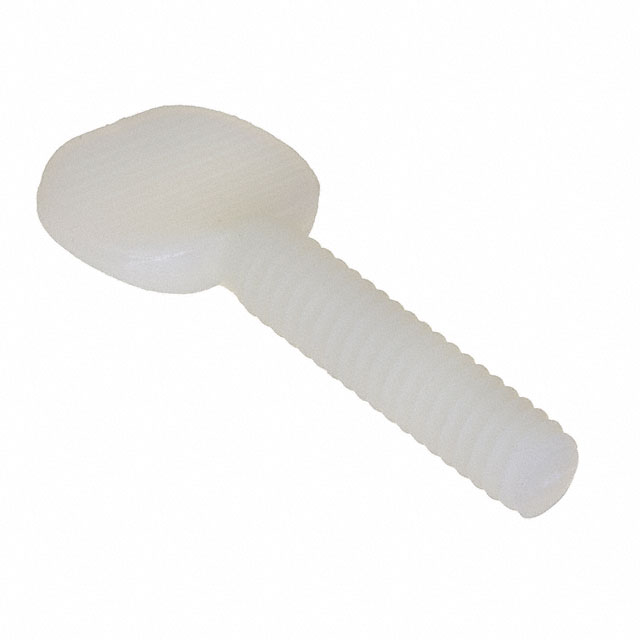

OVAL HEAD THUMB SCREW 1/4-20 THR

Search across all available documentation for this part.

Active

Essentra Access Solutions

OVAL HEAD THUMB SCREW 1/4-20 THR

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head	Length - Below Head	Screw Head Type	Thread Size	Length - Overall [x]	Length - Overall	Material	Type	Head Height	Head Height	Length - Overall [x]	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]
Essentra Access Solutions 092520100T	25.4 mm	1 in	Knob	1/4"-20	1.365 in	34.67 mm	Nylon	Thumb Screw
Essentra Access Solutions 092520100TEG	25.4 mm	1 in	Knob	1/4"-20	1.305 in		Nylon		7.75 mm	0.305 in	33.15 mm	Slotted	12.19 mm	0.48 in
Essentra Access Solutions 092520100V	25.4 mm	1 in	Oval Head	1/4"-20			Nylon	Thumb Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/4"-20 Oval Head Thumb Screw Drive Nylon
