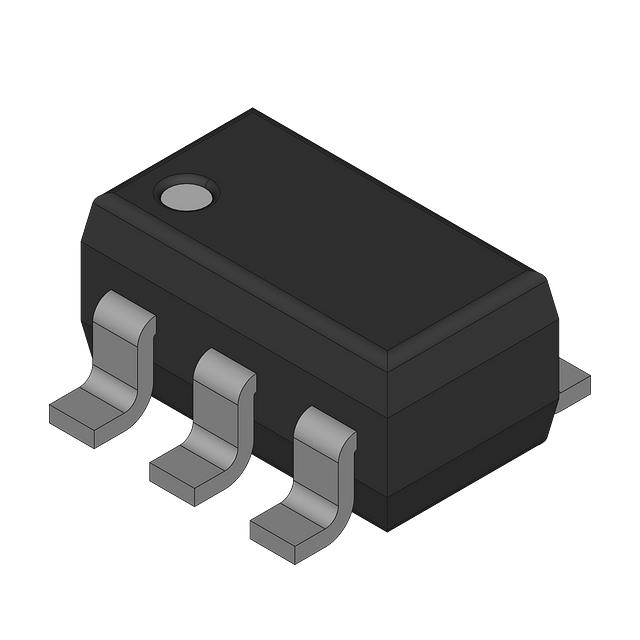

MIC5216-3.0BM5TR

Active

Microchip Technology

500 MILLI AMP-PEAK OUTPUT LDO

Deep-Dive with AI

Search across all available documentation for this part.

MIC5216-3.0BM5TR

Active

Microchip Technology

500 MILLI AMP-PEAK OUTPUT LDO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MIC5216-3.0BM5TR

Control Features	Error Flag, Current Limit, Enable
Current - Output	500 mA
Current - Quiescent (Iq)	3 µA
Current - Supply (Max) [Max]	25 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Protection Features	Over Temperature, Over Current, Under Voltage Lockout (UVLO), Reverse Polarity
PSRR	75 dB
Supplier Device Package	8-MSOP
Voltage - Input (Max) [Max]	12 V
Voltage Dropout (Max) [Max]	0.6 V

MIC5216 Series

500mA Peak Output LDO w/ Flag

Part	PSRR	Current - Quiescent (Iq)	Protection Features	Voltage - Input (Max) [Max]	Output Type	Voltage Dropout (Max) [Max]	Number of Regulators	Mounting Type	Package / Case	Package / Case [custom]	Package / Case	Control Features	Current - Supply (Max) [Max]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Supplier Device Package	Current - Output	Voltage - Output (Min/Fixed)	Output Type
Microchip Technology MIC5216YMM TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V	Adjustable	0.6 V	1	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	Enable	25 mA	Positive	125 °C	-40 °C	Adjustable	8-MSOP	500 mA
Microchip Technology MIC5216-3.3BMM-TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	Enable	25 mA	Positive	125 °C	-40 °C		8-MSOP	500 mA	3.3 V	1.81 mOhm
Microchip Technology MIC5216-3.2BM5-TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	SC-74A SOT-753			Enable	25 mA	Positive	125 °C	-40 °C		SOT-23-5	500 mA	3.2 V	1.81 mOhm
Microchip Technology MIC5216-3.3BM5-TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	SC-74A SOT-753			Enable	25 mA	Positive	125 °C	-40 °C		SOT-23-5	500 mA	3.3 V	1.81 mOhm
Microchip Technology MIC5216-3.6YM5-TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	SC-74A SOT-753			Enable	25 mA	Positive	125 °C	-40 °C		SOT-23-5	500 mA	3.6 V	1.81 mOhm
Microchip Technology MIC5216-40BM5
Microchip Technology MIC5216-2.5YM5-TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	SC-74A SOT-753			Enable	25 mA	Positive	125 °C	-40 °C		SOT-23-5	500 mA	2.5 V	1.81 mOhm
Microchip Technology MIC5216-3.3YMM-TR	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	Enable	25 mA	Positive	125 °C	-40 °C		8-MSOP	500 mA	3.3 V	1.81 mOhm
Microchip Technology MIC5216-5.0 BMM	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V		0.6 V	1	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	Enable Error Flag	25 mA	Positive	125 °C	-40 °C		8-MSOP	500 mA	5 V	1.81 mOhm
Microchip Technology MIC5216BMM	75 dB	3 µA	Over Current Over Temperature Reverse Polarity	12 V	Adjustable	0.6 V	1	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	Enable	25 mA	Positive	125 °C	-40 °C	Adjustable	8-MSOP	500 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MIC5216 Series

The MIC5216 is an efficient linear voltage regulator with high peak output current capability, very low dropout voltage, and better than 1% output voltage accuracy. Dropout is typically 10mV at light loads and less than 500mV at full load.

The MIC5216 is designed to provide a peak output current for startup conditions where higher in-rush current is demanded. It features a 500mA peak output rating. Continuous output current is limited only by package and layout.

The MIC5216 has an internal undervoltage monitor with a flag output. It also can be enabled or shutdown by a CMOS- or TTL-compatible signal. When disabled, power consumption drops nearly to zero. Dropout ground current is minimized to help prolong battery life. Other key features include reversed battery protection, current limiting, over-temperature shutdown, and low noise performance.
