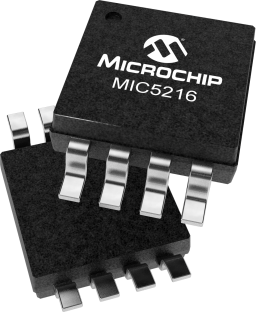

MIC5216-3.3YMM-TR
Active500MA PEAK 1% LOW NOISE LDO W/FLAG 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MIC5216-3.3YMM-TR
Active500MA PEAK 1% LOW NOISE LDO W/FLAG 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MIC5216-3.3YMM-TR |
|---|---|
| Control Features | Enable |
| Current - Output | 500 mA |
| Current - Quiescent (Iq) | 3 µA |
| Current - Supply (Max) [Max] | 25 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-MSOP, 8-TSSOP |
| Package / Case | 3 mm |
| Package / Case [custom] | 0.118 in |
| Protection Features | Over Temperature, Reverse Polarity, Over Current |
| PSRR | 75 dB |
| Supplier Device Package | 8-MSOP |
| Voltage - Input (Max) [Max] | 12 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 0.6 V |
MIC5216 Series
500mA Peak Output LDO w/ Flag
| Part | PSRR | Current - Quiescent (Iq) | Protection Features | Voltage - Input (Max) [Max] | Output Type | Voltage Dropout (Max) [Max] | Number of Regulators | Mounting Type | Package / Case | Package / Case [custom] | Package / Case | Control Features | Current - Supply (Max) [Max] | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Supplier Device Package | Current - Output | Voltage - Output (Min/Fixed) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | Adjustable | 0.6 V | 1 | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Enable | 25 mA | Positive | 125 °C | -40 °C | Adjustable | 8-MSOP | 500 mA | ||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Enable | 25 mA | Positive | 125 °C | -40 °C | 8-MSOP | 500 mA | 3.3 V | 1.81 mOhm | ||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | SC-74A SOT-753 | Enable | 25 mA | Positive | 125 °C | -40 °C | SOT-23-5 | 500 mA | 3.2 V | 1.81 mOhm | ||||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | SC-74A SOT-753 | Enable | 25 mA | Positive | 125 °C | -40 °C | SOT-23-5 | 500 mA | 3.3 V | 1.81 mOhm | ||||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | SC-74A SOT-753 | Enable | 25 mA | Positive | 125 °C | -40 °C | SOT-23-5 | 500 mA | 3.6 V | 1.81 mOhm | ||||
Microchip Technology | |||||||||||||||||||||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | SC-74A SOT-753 | Enable | 25 mA | Positive | 125 °C | -40 °C | SOT-23-5 | 500 mA | 2.5 V | 1.81 mOhm | ||||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Enable | 25 mA | Positive | 125 °C | -40 °C | 8-MSOP | 500 mA | 3.3 V | 1.81 mOhm | ||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | 0.6 V | 1 | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Enable Error Flag | 25 mA | Positive | 125 °C | -40 °C | 8-MSOP | 500 mA | 5 V | 1.81 mOhm | ||
Microchip Technology | 75 dB | 3 µA | Over Current Over Temperature Reverse Polarity | 12 V | Adjustable | 0.6 V | 1 | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Enable | 25 mA | Positive | 125 °C | -40 °C | Adjustable | 8-MSOP | 500 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.27 | |
| 25 | $ 1.90 | |||
| 100 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.27 | ||
| 25 | $ 1.90 | |||
| 100 | $ 1.72 | |||
| Tape & Reel (TR) | 2500 | $ 1.72 | ||
| Microchip Direct | T/R | 1 | $ 2.27 | |
| 25 | $ 1.90 | |||
| 100 | $ 1.72 | |||
| 1000 | $ 1.67 | |||
| 5000 | $ 1.65 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 1.78 | |
Description
General part information
MIC5216 Series
The MIC5216 is an efficient linear voltage regulator with high peak output current capability, very low dropout voltage, and better than 1% output voltage accuracy. Dropout is typically 10mV at light loads and less than 500mV at full load.
The MIC5216 is designed to provide a peak output current for startup conditions where higher in-rush current is demanded. It features a 500mA peak output rating. Continuous output current is limited only by package and layout.
The MIC5216 has an internal undervoltage monitor with a flag output. It also can be enabled or shutdown by a CMOS- or TTL-compatible signal. When disabled, power consumption drops nearly to zero. Dropout ground current is minimized to help prolong battery life. Other key features include reversed battery protection, current limiting, over-temperature shutdown, and low noise performance.
