WAVE-26-12

Active

Wakefield-Vette

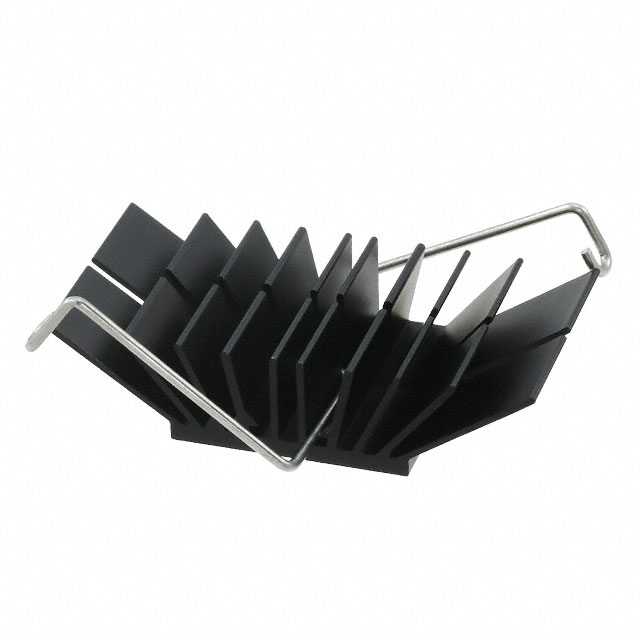

ANCHOR HEATSINK 26X26X12MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ANCHOR HEATSINK 26X26X12MM

Technical Specifications

Parameters and characteristics for this part

Specification	WAVE-26-12

Attachment Method	Clip
Fin Height [z]	0.472 in
Fin Height [z]	12 mm
Length [x]	1.024 "
Length [x]	26 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	5.21 °C/W
Type	Board Level
Width [x]	1.024 in
Width [x]	26 mm

ANCHOR HEATSINK 26X26X12MM

Part	Type	Package Cooled	Material	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Material Finish	Length [x]	Length [x]	Attachment Method	Shape	Fin Height [z]	Fin Height [z]
Wakefield-Vette WAVE-26-12	Board Level	BGA	Aluminum Alloy	1.024 in	26 mm	5.21 °C/W	Black Anodized	1.024 "	26 mm	Clip	Angled Fins, Square	0.472 in	12 mm
