Technical Specifications
Parameters and characteristics for this part
| Specification | 1375796-3 |
|---|---|
| Color | Black |
| Connector Style | PC/104 |
| Connector Type | Non-Stackthrough, Keyed (PC/104) |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 104 |
| Number of Positions Loaded | 102 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.62 | |
| 21 | $ 22.79 | |||
| 42 | $ 21.19 | |||
| 63 | $ 20.02 | |||
| 105 | $ 19.58 | |||
| 252 | $ 19.43 | |||
| 504 | $ 18.70 | |||
Description
General part information
PC/104, PC/104+ Series

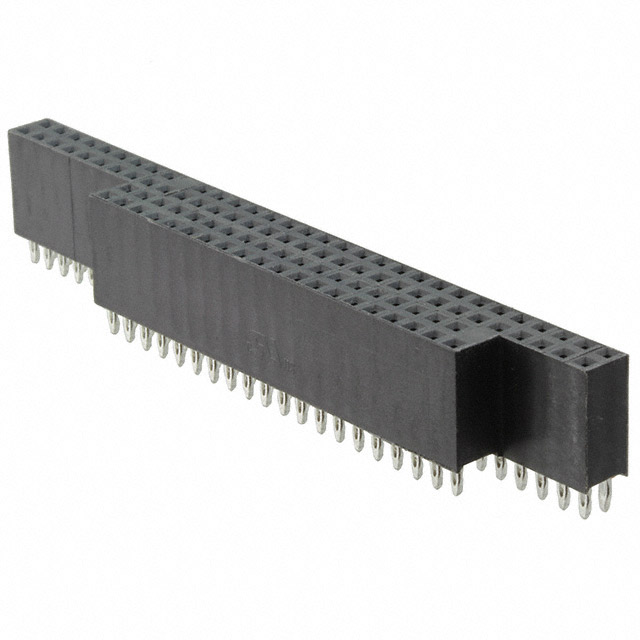

PC / 104 Connectors 64/40 POS ASSY No standoffs Keyed
