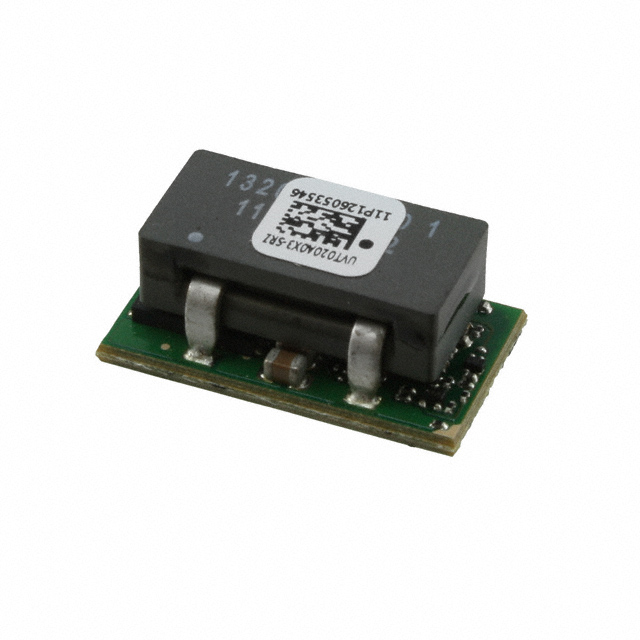

UVT020A0X3-SRZ

Active

OmniOn Power™

DC DC CONVERTER 0.6-5.5V 110W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.6-5.5V 110W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.6-5.5V 110W

Part	Efficiency	Current - Output (Max) [Max]	Applications	Package / Case	Type	Control Features	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
OmniOn Power™ UVT020A0X3-SRZ	95.2 %	20 A	ITE (Commercial)	16-SMD Module	Non-Isolated PoL Module	Active Low, Enable	14.4 V	1	5.5 V	0.6 V	3 V	Surface Mount	110 W	Remote On/Off, UVLO	85 °C	-40 °C	20.3 mm	8.5 mm	0.33 in	0.8 "	0.45 in	11.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 20A 3V - 14.4V Input
