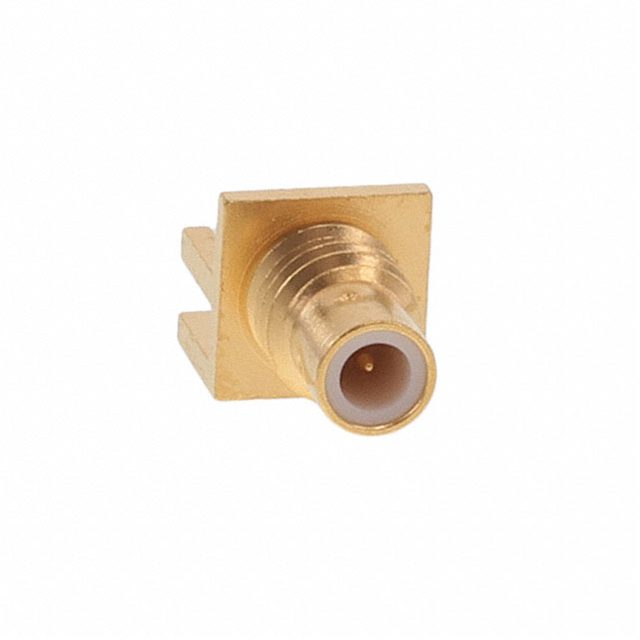

1009-1511-005

Active

Radiall USA, Inc.

SMC M STR EDGE PIN

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M STR EDGE PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1009-1511-005	1009-1511 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMC	SMC
Connector Type	Male Pin, Jack	Male Pin, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.25 dB	0.25 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder

SMC M STR EDGE PIN

Part	Connector Type	Center Contact Plating	Dielectric Material	Housing Color	Number of Ports	Insertion Loss	Mating Cycles	Contact Termination	Center Contact Material	Mounting Type	Body Material	Shield Termination	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Frequency - Max [Max]	Connector Style
Radiall USA, Inc. 1009-1511-005	Jack, Male Pin	Gold	Polytetrafluoroethylene (PTFE)	Gold	1	0.25 dB	500	Solder	Brass	Board Edge, End Launch	Brass	Solder	50 Ohms	-65 ░C	165 °C	Gold	10 GHz	SMC
Radiall USA, Inc. 1009-1511-000	Jack, Male Pin	Gold	Polytetrafluoroethylene (PTFE)	Gold	1	0.25 dB	500	Solder	Brass	Through Hole	Brass	Solder	50 Ohms	-65 ░C	165 °C	Gold	10 GHz	SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Jack, Male Pin 50 Ohms Board Edge, End Launch Solder
