S29CD016J0MFAM013

Active

Infineon Technologies

IC FLASH 16MBIT PAR 56MHZ 80FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S29CD016J0MFAM013

Active

Infineon Technologies

IC FLASH 16MBIT PAR 56MHZ 80FBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S29CD016J0MFAM013

Access Time	54 ns
Clock Frequency	56 MHz
Memory Format	FLASH
Memory Interface	Parallel
Memory Organization	512 K
Memory Size	16 Mb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

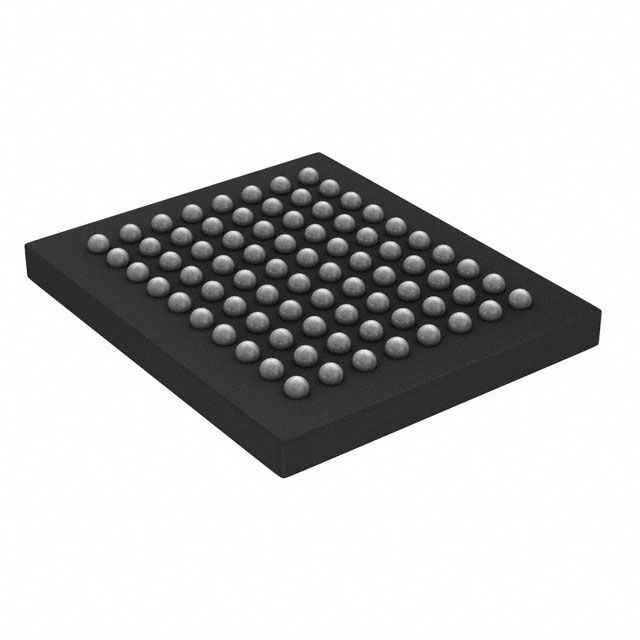

Package / Case	80-LBGA
Supplier Device Package	80-FBGA (13x11)
Technology	FLASH - NOR
Voltage - Supply [Max]	2.75 V
Voltage - Supply [Min]	1.65 V
Write Cycle Time - Word, Page	60 ns

S29CD016 Series

Part	Memory Format	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Memory Type	Memory Interface	Technology	Memory Organization	Write Cycle Time - Word, Page	Supplier Device Package	Clock Frequency	Access Time	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Infineon Technologies S29CD016J1JDGH014	FLASH	16 Mb	145 °C	-40 °C	Die	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	Die	40 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0PQAM013	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	66 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0MQAM010	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	56 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0PQFM113	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	66 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0MQFM030	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	56 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J1JQFM010	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	40 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J1MDGH114	FLASH	16 Mb	145 °C	-40 °C	Die	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	Die	56 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0PQAM113	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	66 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0MQAM013	FLASH	16 Mb	125 °C	-40 °C	80-BQFP	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-PQFP (14x20)	56 MHz	54 ns	Surface Mount	2.75 V	1.65 V
Infineon Technologies S29CD016J0MFAM013	FLASH	16 Mb	125 °C	-40 °C	80-LBGA	Non-Volatile	Parallel	FLASH - NOR	512 K	60 ns	80-FBGA (13x11)	56 MHz	54 ns	Surface Mount	2.75 V	1.65 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1600	$ 5.28

Description

General part information

S29CD016 Series

FLASH - NOR Memory IC 16Mbit Parallel 56 MHz 54 ns 80-FBGA (13x11)
