Specification	JL04V-2A28-11SE-R

Applications	Telecommunications, Test Equipment & Measurement, Industrial, Medical
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating Options	13A, 23A
Fastening Type	Threaded
Features	Ground
Insert Material	Silicon Rubber
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	22
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Position Types	PE
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert Length	28 mm
Shell Size - Insert Width	11 mm
Termination	Solder Cup
Voltage Rating (AC)	250 VAC, 100 VAC

JL04V-2A Series

Part	Features	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Color	Insert Material	Orientation	Termination	Fastening Type	Applications	Contact Finish - Mating	Connector Type	Shell Size - Insert Width	Shell Size - Insert Length	Position Types	Number of Positions	Mounting Type	Shell Finish	Current Rating Options	Primary Material	Contact Material	Voltage Rating (AC)	Cable Opening	Current Rating
JAE Electronics JL04V-2A28-11PE-R	Ground	Flange	125 °C	-55 °C	Aluminum Alloy	Black	Silicon Rubber	N (Normal)	Solder Cup	Threaded	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Male Pins Receptacle	11 mm	28 mm	PE	22	Panel Mount	Zinc	13A 23A	Metal	Copper Alloy	100 VAC 250 VAC
JAE Electronics JL04V-2A18-10SE-B-R	Ground	Flange	125 °C	-55 °C	Aluminum Alloy	Black	Synthetic Resin	N (Normal)	Solder Cup	Threaded	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Female Sockets Receptacle	10 mm	18 mm	PE	4	Panel Mount	Zinc		Metal	Copper Alloy		0.978 in	23 A

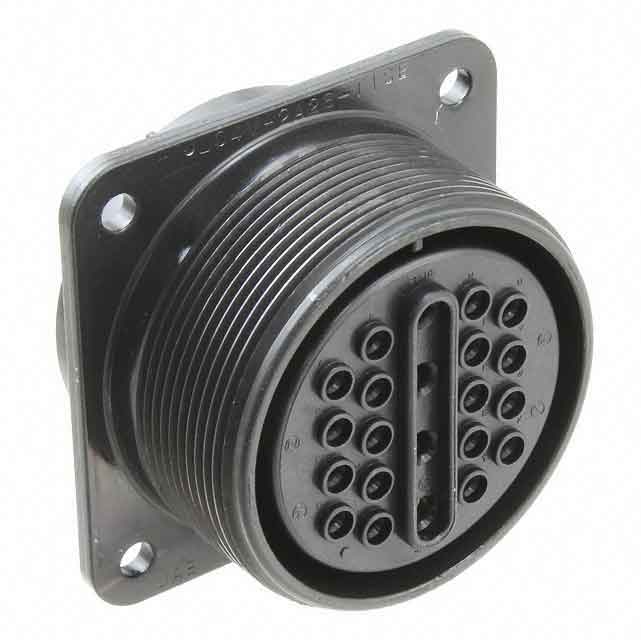

JAE Electronics JL04V-2A28-11SE-R	Ground	Flange	125 °C	-55 °C	Aluminum Alloy	Black	Silicon Rubber	N (Normal)	Solder Cup	Threaded	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Female Sockets Receptacle	11 mm	28 mm	PE	22	Panel Mount	Zinc	13A 23A	Metal	Copper Alloy	100 VAC 250 VAC
