T4113401041-000
ActiveTE Connectivity AMP Connectors

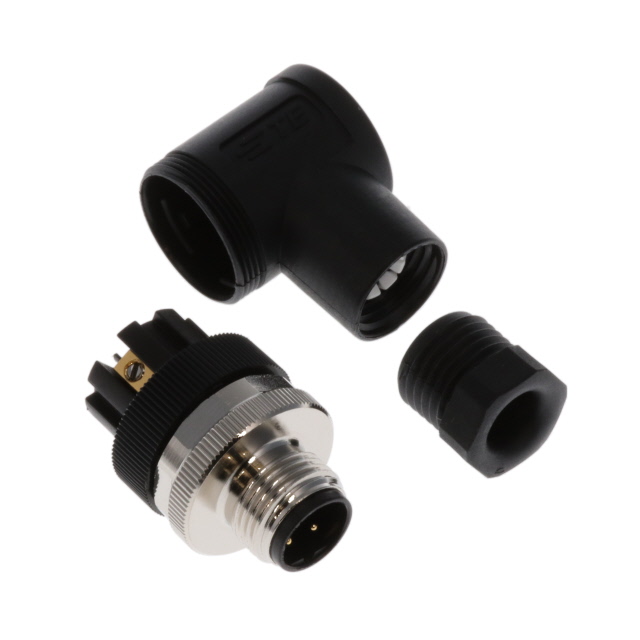

CONN RCPT MALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4113401041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 4POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4113401041-000 | T41134 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) | Glass Filled, Polybutylene Terephthalate (PBT), Nickel, Brass |
| Cable Opening | - | 8 mm |
| Cable Opening | - | 6 mm |
| Cable Opening | - | 0.315 in |
| Cable Opening | - | 0.236 in |
| Cable Opening [diameter] | 6 mm, 4 mm | 4 - 6 mm |
| Cable Opening [diameter] | 0.236 in, 0.157 in | 0.157 - 0.236 in |
| Color | Black, Silver | Black, Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Brass | Brass, Zinc Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M12-4 | M12-3, M12-5, M12-4, M12-2 |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | Screw | Screw |
| Voltage Rating | 250 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.11 | |
| 10 | $ 4.45 | |||
| 25 | $ 4.33 | |||
| 50 | $ 4.22 | |||
| 100 | $ 4.13 | |||
T41134 Series
CONN RCPT MALE 3POS SILVER SCREW
| Part | Current Rating (Amps) | Mounting Type | Contact Material | Ingress Protection | Termination | Shielding | Voltage Rating | Shell Material | Shell Finish | Insert Material | Primary Material | Contact Finish - Mating | Applications | Backshell Material, Plating | Color | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Connector Type | Orientation | Features | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4113401032-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 2.03 µm | 80 µin | M12-3 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | |||||
TE Connectivity AMP Connectors T4113402052-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 60 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 2.03 µm | 80 µin | M12-5 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113412052-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 60 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Brass, Nickel | Silver | 2.03 µm | 80 µin | M12-5 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113412051-000 | 4 A | Free Hanging (In-Line), Right Angle | Zinc Alloy | IP67 - Dust Tight, Waterproof | Screw | Shielded | 60 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Brass, Nickel | Silver | 0.076 µm | 3 µin | M12-5 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113412042-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Brass, Nickel | Silver | 2.03 µm | 80 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 | ||
TE Connectivity AMP Connectors T4113402051-000 | 4 A | Free Hanging (In-Line), Right Angle | Zinc Alloy | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 60 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 0.076 µm | 3 µin | M12-5 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113402041-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 0.076 µm | 3 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 | ||
TE Connectivity AMP Connectors T4113411052-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 60 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Brass, Nickel | Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 2.03 µm | 80 µin | M12-5 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | |||||
TE Connectivity AMP Connectors T4113411021-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Brass, Nickel | Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 0.076 µm | 3 µin | M12-2 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 2 | ||||
TE Connectivity AMP Connectors T4113402042-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 2.03 µm | 80 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | 4 | ||
TE Connectivity AMP Connectors T4113401052-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 60 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 2.03 µm | 80 µin | M12-5 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | |||||
TE Connectivity AMP Connectors T4113412031-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Brass, Nickel | Silver | 0.076 µm | 3 µin | M12-3 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113401041-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 0.076 µm | 3 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 4 | ||||
TE Connectivity AMP Connectors T4113401042-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 2.03 µm | 80 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 4 | ||||
TE Connectivity AMP Connectors T4113411041-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Gold | Industrial | Brass, Nickel | Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 0.076 µm | 3 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 4 | ||||
TE Connectivity AMP Connectors T4113411042-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Brass, Nickel | Silver | 4 mm, 6 mm | 0.157 in, 0.236 in | 2.03 µm | 80 µin | M12-4 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 4 | ||||
TE Connectivity AMP Connectors T4113412022-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Shielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Brass, Nickel | Silver | 2.03 µm | 80 µin | M12-2 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in | 2 | ||
TE Connectivity AMP Connectors T4113402032-000 | 4 A | Free Hanging (In-Line), Right Angle | Brass | IP67 - Dust Tight, Waterproof | Screw | Unshielded | 250 VDC | Brass | Nickel | Nylon, Polyamide (PA) | Metal | Silver | Industrial | Glass Filled, Polybutylene Terephthalate (PBT) | Black, Silver | 2.03 µm | 80 µin | M12-3 | Male Pins, Receptacle | B | Backshell | 85 °C | -40 °C | 8 mm | 6 mm | 0.315 in | 0.236 in |
Description
General part information
T41134 Series
4 Position Circular Connector Receptacle, Male Pins Screw
