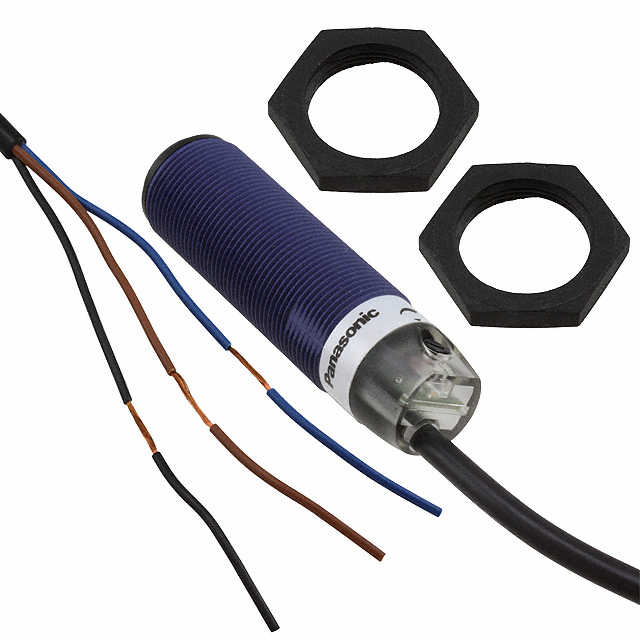

CY-122A

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLCTV 60CM NPN OPEN COL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLCTV 60CM NPN OPEN COL

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Connection Method	Adjustment Type	Cable Length	Cable Length	Light Source	Sensing Distance	Sensing Distance	Sensing Distance	Ingress Protection	Output Configuration	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]
Panasonic Industrial Automation Sales CY-122A	1 ms	Cable	Adjustable	78.74 in	2 m	Infrared	23.6 in	60 cm	2 ft	IP67	NPN - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V
Panasonic Industrial Automation Sales CY-122B-Z	1 ms	4POS Connector M12	Adjustable			Infrared	23.6 in	60 cm	2 ft	IP67	NPN - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V
Panasonic Industrial Automation Sales CY-122VA	1 ms	Cable	Adjustable	78.74 in	2 m	Infrared	23.6 in	60 cm	2 ft	IP67	NPN - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V
Panasonic Industrial Automation Sales CY-122A-P	1 ms	Cable	Adjustable	78.74 in	2 m	Infrared	23.6 in	60 cm	2 ft	IP67	PNP - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V
Panasonic Industrial Automation Sales CY-122A-P-Z	1 ms	4POS Connector M12	Adjustable			Infrared	23.6 in	60 cm	2 ft	IP67	PNP - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V
Panasonic Industrial Automation Sales CY-122A-Z	1 ms	4POS Connector M12	Adjustable			Infrared	23.6 in	60 cm	2 ft	IP67	NPN - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V
Panasonic Industrial Automation Sales CY-122B	1 ms	Cable	Adjustable	78.74 in	2 m	Infrared	23.6 in	60 cm	2 ft	IP67	NPN - Open Collector	Diffuse Reflective	55 °C	-25 °C	12 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Reflective, Diffuse Optical Sensor 23.6" (60cm) 2.0' NPN - Open Collector
