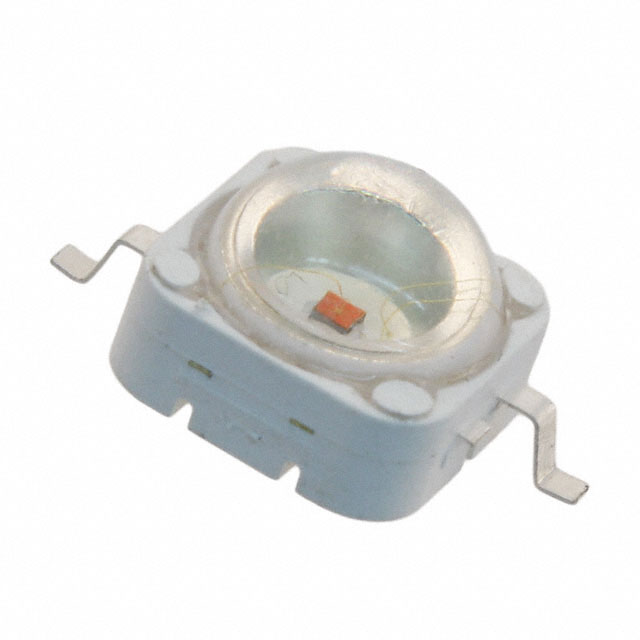

AAD1-9090SY28ZC

Active

Kingbright

LED AAD1-9090 YELLOW 588NM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAD1-9090SY28ZC

Active

Kingbright

LED AAD1-9090 YELLOW 588NM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAD1-9090SY28ZC	AAD1-9090 Series

Color	Yellow	Red, Green, Blue, Yellow, Orange-Red
Configuration	-	Starboard
Current - Max	-	350 mA
Current - Max	-	350 mA
Current - Max	-	350 mA
Current - Max [Max]	350 mA	350 - 700 mA
Current - Test	350 mA	350 - 500 mA
Height	-	8.3 mm
Height - Seated (Max) [Max] [z]	6.78 mm	6.78 mm
Height - Seated (Max) [Max] [z]	0.267 in	0.267 in
Lens Type	-	Domed
Lumens/Watt @ Current - Test	37 lm/W	7 - 40 lm/W
Lumens/Watt @ Current - Test	-	18 lm/W
Lumens/Watt @ Current - Test	-	34 lm/W
Lumens/Watt @ Current - Test	-	43 lm/W
Luminous Flux @ Current/Temperature	32 lm	20 - 50 lm
Luminous Flux @ Current/Temperature	-	30 lm
Luminous Flux @ Current/Temperature	-	50 lm
Luminous Flux @ Current/Temperature	-	20 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad	4-SMD, J-Lead Exposed Pad, 2-SMD, Gull Wing Exposed Pad
Size / Dimension [x]	9 mm	9 mm
Size / Dimension [x]	0.354 "	0.354 - 19.75 mm
Size / Dimension [y]	9 mm	9 mm
Size / Dimension [y]	0.354 in	0.354 - 19.05 mm
Thermal Resistance of Package	-	9 - 12 °C/W
Thermal Resistance of Package	-	11 °C/W
Thermal Resistance of Package [custom]	12 °C/W	12 °C/W
Type	-	LED Module
Viewing Angle	100 °	100 - 135 °
Voltage - Forward (Vf) (Typ)	2.5 V	2.5 - 3.9 V
Voltage - Forward (Vf) (Typ)	-	2.5 V
Voltage - Forward (Vf) (Typ)	-	3.2 V
Voltage - Forward (Vf) (Typ)	-	3.3 V
Wavelength	588 nm	460 - 625 nm
Wavelength	-	625nm Red, 458nm Blue, 530nm Green

AAD1-9090 Series

LED MOD XPOWER RGB STARBOARD

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Type	Viewing Angle	Wavelength	Current - Test	Height [z]	Lens Type	Color	Configuration	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Wavelength	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Thermal Resistance of Package [custom]
Kingbright AAD1-9090BRGC-01/3-S	19.75 mm	19.05 mm	350 mA	2.5 V	3.2 V	3.3 V	LED Module	135 °	458nm Blue, 530nm Green, 625nm Red	350 mA	8.3 mm	Domed	Blue, Green, Red	Starboard
Kingbright AAD1-9090BRGC-01/3	0.354 "	0.354 in		2.5 V	3.2 V	3.3 V		135 °	458nm Blue, 530nm Green, 625nm Red				Blue, Green, Red		350 mA	350 mA	350 mA	Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	4-SMD, J-Lead Exposed Pad	18 lm/W	34 lm/W	43 lm/W	30 lm	50 lm	20 lm	9 °C/W, 9 °C/W, 12 °C/W
Kingbright AAD1-9090SY28ZC-S	19.75 mm	19.05 mm	350 mA				LED Module	135 °		350 mA	8.3 mm	Domed	Yellow	Starboard																	2.5 V	588 nm
Kingbright AAD1-9090SY28ZC	0.354 "	0.354 in	350 mA					100 °		350 mA			Yellow					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								2.5 V	588 nm	37 lm/W	32 lm	12 °C/W
Kingbright AAD1-9090QB11ZC/3-S	19.75 mm	19.05 mm	700 mA				LED Module	135 °			8.3 mm	Domed	Blue	Starboard																	3.9 V	460 nm	7 lm/W	20 lm
Kingbright AAD1-9090SE28ZC-S	19.75 mm	19.05 mm	350 mA				LED Module	135 °		350 mA	8.3 mm	Domed	Orange-Red	Starboard																	2.5 V	625 nm	34 lm/W	30 lm
Kingbright AAD1-9090SE28ZC	0.354 "	0.354 in	350 mA					100 °		350 mA			Red					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								2.5 V	625 nm	40 lm/W	35 lm	12 °C/W
Kingbright AAD1-9090SE9ZC/2	0.354 "	0.354 in	500 mA					100 °		500 mA			Red					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								2.7 V	623 nm	37 lm/W	50 lm	12 °C/W
Kingbright AAD1-9090QB11ZC/3	0.354 "	0.354 in	700 mA					100 °					Blue					Surface Mount	6.78 mm	0.267 in	9 mm	9 mm	2-SMD, Gull Wing Exposed Pad								3.9 V	460 nm	11 lm/W	29 lm		11 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.93
		10	$ 2.67
		100	$ 2.02
	Digi-Reel®	1	$ 3.93
		10	$ 2.67
		100	$ 2.02

Description

General part information

AAD1-9090 Series

LED Lighting Color AAD1-9090 Yellow 588nm (Typ) 2-SMD, Gull Wing Exposed Pad
