892-016-555-207
ActiveEDAC Inc.

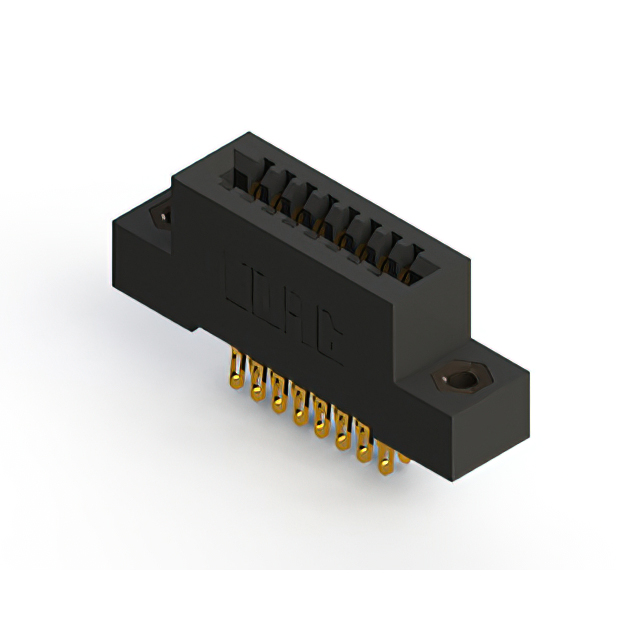

CONN EDGE DUAL FMALE 16POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-016-555-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-016-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-016 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Type | Features | Flange Feature | Termination | Number of Positions | Contact Material | Contact Finish | Card Type | Color | Mounting Type | Gender | Material - Insulation | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | 8 | 8 | 8 | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Dual | Cantilever | Card Extender | Flush Mount M3 Threaded Insert Top Opening | Solder | 16 | Copper Alloy | Gold | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | Polyphenylene Sulfide (PPS) | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Single | Cantilever | Flush Mount Side Opening Unthreaded | Wire Wrap | 16 | Copper Alloy | Gold | Non Specified - Single Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | 16 | 3.25 mm | 0.128 " | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | 8 | 8 | 8 | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Dual | Cantilever | Card Extender | Flush Mount Top Opening Unthreaded | Solder | 16 | Copper Alloy | Gold | Non Specified - Dual Edge | Black | Board Edge Straddle Mount | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 " | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | 8 | 8 | 8 | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Dual | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | 16 | Copper Alloy | Gold | Non Specified - Dual Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Single | Cantilever | Solder | 16 | Copper Alloy | Gold | Non Specified - Single Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | 16 | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | 8 | 8 | 8 | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Dual | Cantilever | Flush Mount Side Opening Unthreaded | Solder | 16 | Copper Alloy | Gold | Non Specified - Dual Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Single | Cantilever | Floating Bobbin Flush Mount | Solder | 16 | Copper Alloy | Gold | Non Specified - Single Edge | Black | Through Hole Right Angle | Female | Polyphenylene Sulfide (PPS) | 16 | 2.95 mm | 0.116 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | 8 | 8 | 8 | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Dual | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 16 | Copper Alloy | Gold | Non Specified - Dual Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | 8 | 8 | 8 | 2 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Dual | Cantilever | Flush Mount Top Opening Unthreaded | Solder | 16 | Copper Alloy | Gold | Non Specified - Dual Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Single | Cantilever | Flush Mount Top Opening Unthreaded | Wire Wrap | 16 | Copper Alloy | Gold | Non Specified - Single Edge | Black | Through Hole | Female | Polyphenylene Sulfide (PPS) | 16 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Documents
Technical documentation and resources
