1096429

Active

Phoenix Contact

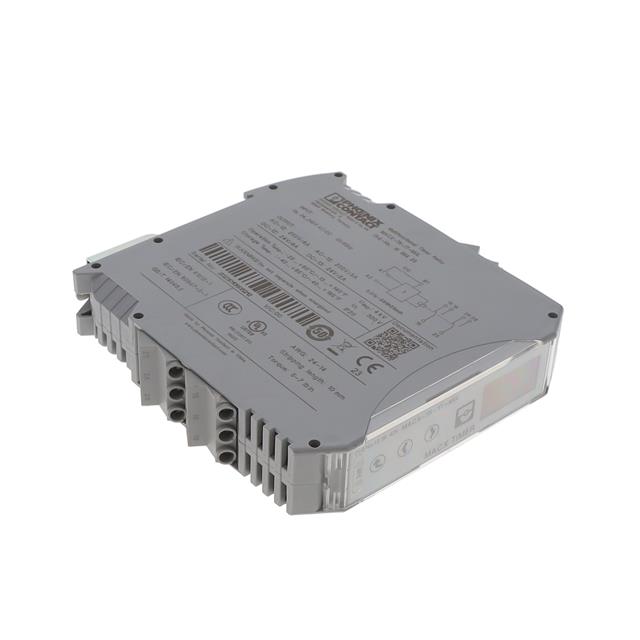

RELAY TIME DELAY 999HR 8A 400V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY TIME DELAY 999HR 8A 400V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1096429	10964 Series

Circuit	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating @ Voltage	8 A, 400 VAC	8 - 400 A
Delay Time [Max]	999 Hrs	999 - 999.9 Hrs
Delay Time [Min]	0.01 Sec	0.01 Sec
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Timing Adjustment Method	Up/Down Digit Keys	Up/Down Digit Keys
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	24 VAC	24 VAC

RELAY TIME DELAY 999HR 8A 400V

Part	Timing Initiate Method	Function	Timing Adjustment Method	Circuit	Contact Rating @ Voltage	Relay Type	Termination Style	Delay Time [Min]	Delay Time [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type
Phoenix Contact 1096429	Input Voltage	Programmable (Multi-Function)	Up/Down Digit Keys	DPDT (2 Form C)	8 A, 400 VAC	Mechanical Relay	Screw Terminal	0.01 Sec	999 Hrs	24 VAC	240 VAC	DIN Rail
Phoenix Contact 1096431	Input Voltage	Programmable (Multi-Function)	Up/Down Digit Keys	DPDT (2 Form C)	8 A, 400 VAC	Mechanical Relay	Spring Terminal	0.01 Sec	999.9 Hrs	24 VAC	240 VAC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 101.10

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.01 Sec ~ 999 Hrs Delay 8A @ 400VAC DIN Rail
