345-037-540-478

Active

EDAC Inc.

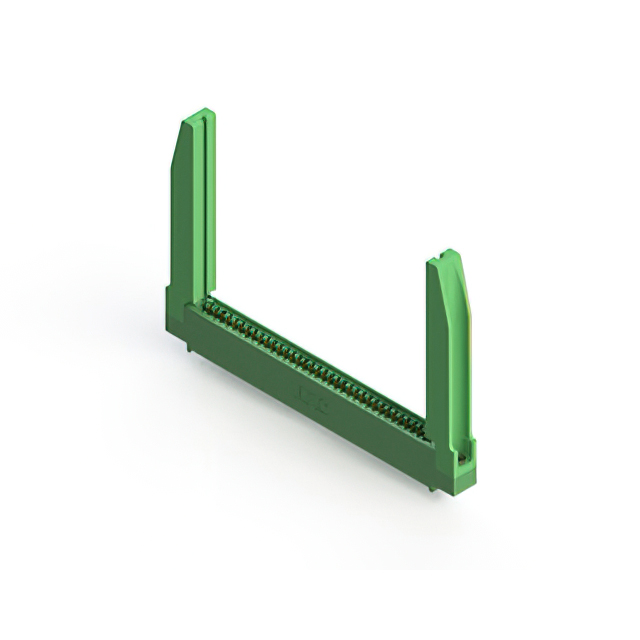

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-037-540-478

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-037-540-478

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

345-037 Series

...

Part	Contact Finish	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Gender	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Material - Insulation	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Termination Rows	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Read Out	Flange Feature	Flange Feature	Features
EDAC Inc. 345-037-523-403	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Solder	-40 °C	105 ░C	Green	Cantilever	1	Through Hole	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 345-037-541-404	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Wire Wrap	-40 °C	105 ░C	Green	Cantilever	1	Through Hole	3.96 mm	Top Mount Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 345-037-542-101	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Wire Wrap	-40 °C	105 ░C	Green	Cantilever	1	Through Hole				10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 345-037-524-612	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Solder	-40 °C	105 ░C	Green	Cantilever	1	Through Hole		Side Mount Opening Unthreaded		10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single	3.25 mm	0.128 in
EDAC Inc. 345-037-521-101	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Solder	-40 °C	105 ░C	Green	Cantilever	1	Through Hole				10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 345-037-540-478	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Wire Wrap	-40 °C	105 ░C	Green	Cantilever	1	Through Hole		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single			Card Guides
EDAC Inc. 345-037-500-407	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Solder Eyelet(s)	-40 °C	105 ░C	Green	Cantilever	1	Through Hole		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 345-037-558-403	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Solder	-40 °C	105 ░C	Green	Cantilever	1	Through Hole Right Angle	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single
EDAC Inc. 345-037-542-678	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Wire Wrap	-40 °C	105 ░C	Green	Cantilever	1	Through Hole		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single			Card Guides
EDAC Inc. 345-037-521-612	Gold	37	37	37	Female	1	2.54 mm	0.1 in	37	Polyester Thermoplastic	Solder	-40 °C	105 ░C	Green	Cantilever	1	Through Hole		Side Mount Opening Unthreaded		10 Áin	0.25 Ám	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Single	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.20
Newark	Each	1	$ 14.26
		100	$ 12.72
		250	$ 11.68
		500	$ 9.71
		1000	$ 7.82

Description

General part information

345-037 Series

37 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
