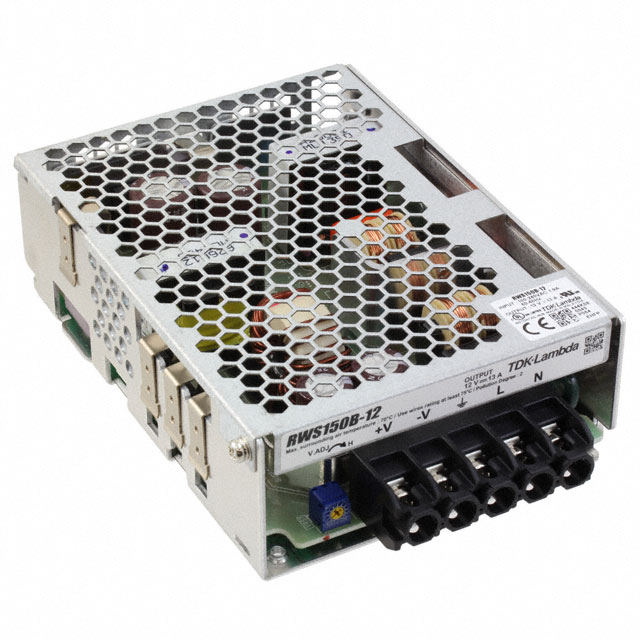

RWS150B-12

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY, COMPACT, ADJUSTABLE, FIXED, 85 V, 265 V, 156 W, 12 V, 13 A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY, COMPACT, ADJUSTABLE, FIXED, 85 V, 265 V, 156 W, 12 V, 13 A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	RWS150B-12

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	13 A
Efficiency	87 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	150 W
Size / Dimension [x]	5.04 "
Size / Dimension [x]	128 mm
Size / Dimension [y]	3.7 in
Size / Dimension [y]	94 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Output 1	Efficiency	Approval Agency	Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Number of Outputs	Features	Applications
TDK-LAMBDA RWS150B-12	12 V	87 %	CE	Enclosed	150 W	5.04 "	128 mm	1.61 "	3.7 in	41 mm	94 mm	85 VAC	265 VAC	Chassis Mount	13 A	-20 °C	70 °C	3000 V	1	Adjustable Output DC Input Capable Universal Input	ITE (Commercial)
TDK-LAMBDA RWS150B-48/CO2	48 V	89 %	CE	Conformal Coated Enclosed	150 W	5.04 "	128 mm	1.61 "	3.7 in	41 mm	94 mm	85 VAC	265 VAC	Chassis Mount	3.3 A	-20 °C	70 °C	3000 V	1	Adjustable Output DC Input Capable Universal Input	ITE (Commercial)
TDK-LAMBDA RWS150B-24	24 V	89 %	CE	Enclosed	150 W	5.04 "	128 mm	1.61 "	3.7 in	41 mm	94 mm	85 VAC	265 VAC	Chassis Mount		-20 °C	70 °C	3000 V	1	Adjustable Output DC Input Capable Universal Input	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
