G4E180-AB09-15

Active

ebm-papst Inc.

FAN BLWR CENT 261X125MM 115VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLWR CENT 261X125MM 115VAC

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Width [y]	Material - Blade	Termination	Air Flow	Air Flow	Weight	Weight	Noise	Material - Frame	Power (Watts)	Bearing Type	Fan Type	Static Pressure	Static Pressure	Features	Current Rating (Amps)	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Ingress Protection
ebm-papst Inc. G4E180-AB09-15	115 VAC	125 mm	Steel	2 Wire Leads	9.8 m³/min	350 CFM	3.7 kg	8.2 lbs	65 dB	Aluminum	146 W	Ball	Blower Centrifugal
ebm-papst Inc. G4E180-GS11-01	230 VAC	183 mm	Steel	4 Wire Leads						Steel	200 W	Ball	Blower Centrifugal	0.201 in H2O	50 Pa	Capacitor Thermal Overload Protector (TOP)	880 mA	Rectangular/Rounded	332 mm	295 mm	1170 RPM	-25 °C	-25 °C	35 °C	35 °C	IP44

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

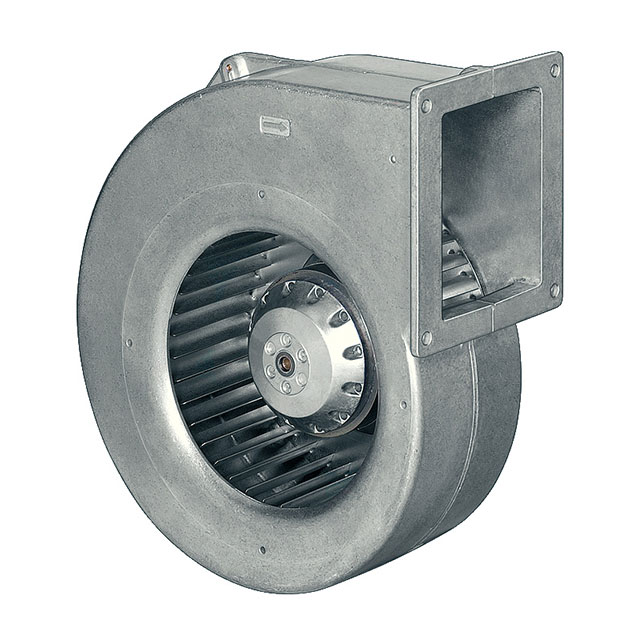

Fan Blower, Centrifugal 115VAC Rectangular - 261mm L x 281mm H (180mm Dia) Ball 350.0 CFM (9.80m³/min) 2 Wire Leads
