R128705711

Active

Radiall USA, Inc.

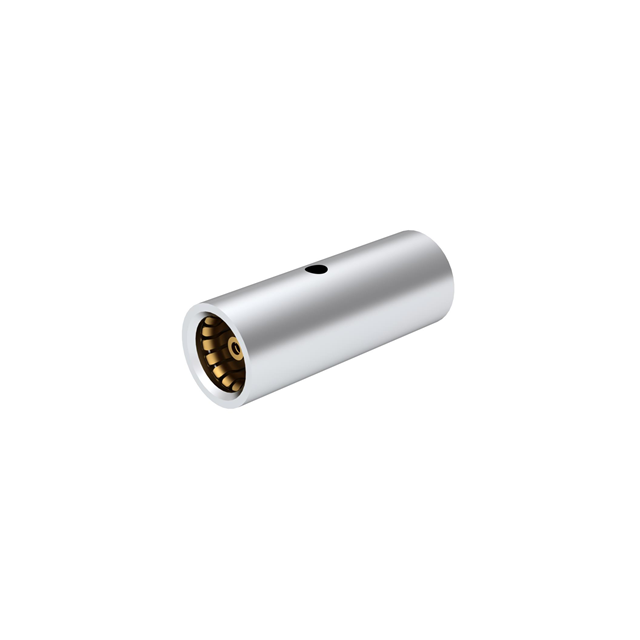

BMA / FEMALE-FEMALE STRAIGHT ADA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BMA / FEMALE-FEMALE STRAIGHT ADA

Technical Specifications

Parameters and characteristics for this part

Specification	R128705711

Adapter Series	BMA to BMA
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BMA Jack, Female Socket
Convert To (Adapter End)	Female Socket, BMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Type	Convert From (Adapter End)	Center Gender	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Convert To (Adapter End)	Center Contact Plating	Body Material	Frequency - Max [Max]	Fastening Type	Conversion Type	Center Contact Material	Mating Cycles	Mounting Type	Style	Dielectric Material
Radiall USA, Inc. R128705711	Jack to Jack	BMA Jack Female Socket	Female to Female	50 Ohms	-65 ░C	165 °C	BMA to BMA	BMA Jack Female Socket	Gold	Stainless Steel	22 GHz	Snap-On	Same Series	Beryllium Copper	1000	Free Hanging (In-Line)	Straight	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 38.60

General part information

Adapter Coaxial Connector BMA Jack, Female Socket To BMA Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
