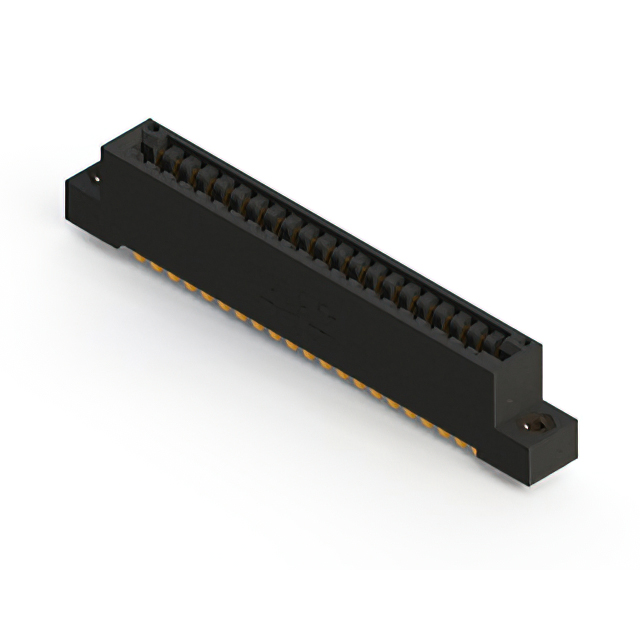

896-042-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-042-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-042-560-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-042 Series
...
| Part | Termination Rows | Number of Rows | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Material - Insulation | Read Out | Card Type | Color | Gender | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions | Contact Type | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 2 | Gold | Through Hole | 10 Áin | 0.25 Ám | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Solder | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | ||
EDAC Inc. | 1 | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Solder | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | 42 | |
EDAC Inc. | 1 | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | 42 | |
EDAC Inc. | 2 | 2 | Gold | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | Card Extender | |||
EDAC Inc. | 1 | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Solder | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | 42 | |||
EDAC Inc. | 1 | 1 | Gold | Through Hole Right Angle | 10 Áin | 0.25 Ám | Solder | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | 42 | ||||
EDAC Inc. | 2 | 2 | Gold | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Solder | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | ||
EDAC Inc. | 1 | 1 | Gold | Through Hole | 10 Áin | 0.25 Ám | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | Single | Non Specified - Single Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | 42 | |
EDAC Inc. | 2 | 2 | Gold | Through Hole | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever | ||||
EDAC Inc. | 2 | 2 | Gold | Through Hole | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Solder | Polyphenylene Sulfide (PPS) | Dual | Non Specified - Dual Edge | Black | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | 42 | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
