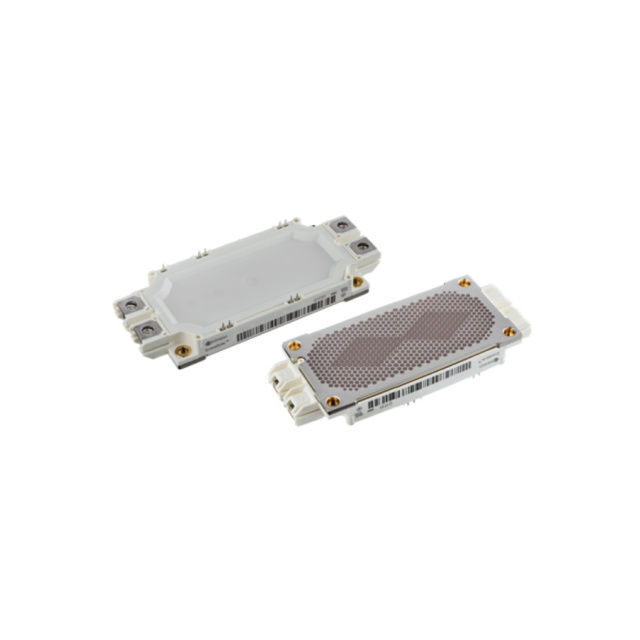

IFF450B12ME4PB11BPSA1
ActiveInfineon Technologies
THE IFF450B12ME4P_B11 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 450 A.
Deep-Dive with AI
Search across all available documentation for this part.
IFF450B12ME4PB11BPSA1
ActiveInfineon Technologies
THE IFF450B12ME4P_B11 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 450 A.
Technical Specifications
Parameters and characteristics for this part
| Specification | IFF450B12ME4PB11BPSA1 |
|---|---|
| Configuration | Half Bridge |
| Current - Collector (Ic) (Max) [Max] | 450 A |
| Current - Collector Cutoff (Max) [Max] | 3 mA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 28 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | True |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Max [Max] | 40 W |
| Supplier Device Package | Module |
| Vce(on) (Max) @ Vge, Ic | 2.1 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IFF450 Series
EconoDUAL™ 31200 V, 450 A dualIGBTmodule with TRENCHSTOPTMIGBT4, Emitter Controlled 4 Diode, NTC, integrated shunts, PressFIT contact technology and pre-appliedThermal Interface Material.
