BBL-114-T-E

Active

Samtec Inc.

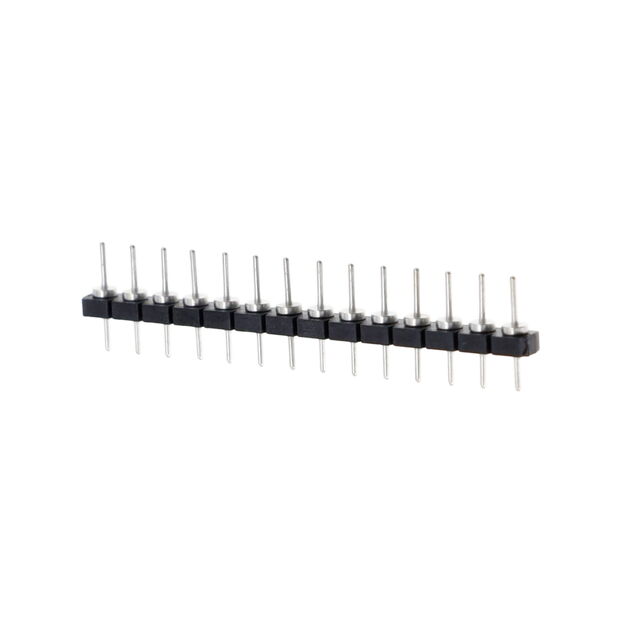

CONN HEADR LOPRO 14POS .100 TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADR LOPRO 14POS .100 TIN

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-114-T-E

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Fastening Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Insulation Color	Contact Shape	Number of Positions	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Material	Mounting Type	Contact Type	Overall Contact Length
Samtec Inc. BBL-114-T-F	Push-Pull	Unshrouded	1.27 µm	50 µin	0.122 in	3.1 mm	Header	Black	Circular	14	Nickel	-55 °C	125 °C	1	8.43 mm	0.332 in	0.085 "	2.15 mm	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Solder	Liquid Crystal Polymer (LCP)	Through Hole	Male Pin
Samtec Inc. BBL-114-T-E	Push-Pull	Unshrouded	1.27 µm	50 µin			Header	Black	Circular	14	Nickel	-55 °C	125 °C	1		7.62 mm	0.07 in	1.78 mm	All	0.1 in	2.54 mm	3.18 mm	0.125 in	Solder	Liquid Crystal Polymer (LCP)	Through Hole	Male Pin	0.3 in
