6382-2PG-522

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6382-2PG-522

Active

Conxall/Switchcraft

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6382-2PG-522	6382-2PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [diameter]	6.35 mm	5.33 - 6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.21 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.19 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	4.83 - 5.59 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6382-2PG Series

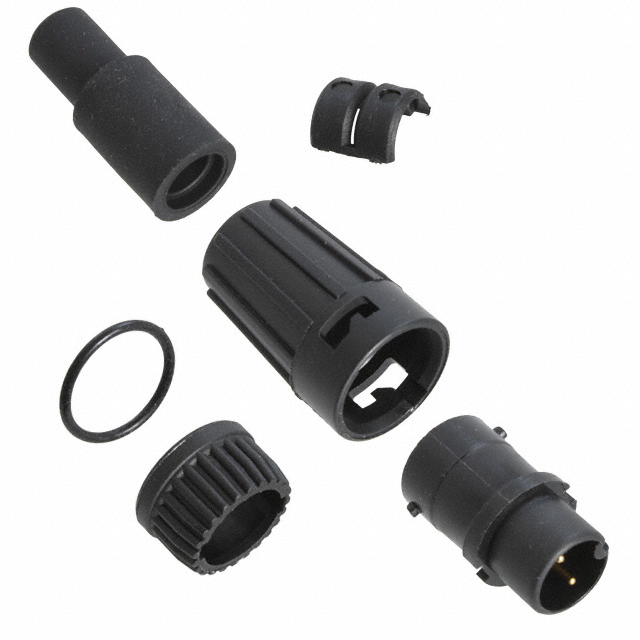

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Number of Positions	Color	Shielding	Contact Finish - Mating	Ingress Protection	Connector Type	Current Rating (Amps)	Features	Orientation	Voltage Rating	Contact Material	Backshell Material, Plating	Applications	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6382-2PG-3DC	-40 °C	115 °C	Bayonet Lock	Free Hanging (In-Line)	2	Black	Unshielded	Gold	Weathertight	Male Pins, Plug	Varies by Wire Gauge	Backshell	Keyed	600 V	Brass	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Plastic
Conxall/Switchcraft 6382-2PG-318	-40 °C	115 °C	Bayonet Lock	Free Hanging (In-Line)	2	Black	Unshielded	Gold	Weathertight	Male Pins, Plug	Varies by Wire Gauge	Backshell	Keyed	600 V	Brass	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Plastic	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6382-2PG-522	-40 °C	115 °C	Bayonet Lock	Free Hanging (In-Line)	2	Black	Unshielded	Gold	Weathertight	Male Pins, Plug	Varies by Wire Gauge	Backshell	Keyed	600 V	Brass	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Plastic					6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6382-2PG-513	-40 °C	115 °C	Bayonet Lock	Free Hanging (In-Line)	2	Black	Unshielded	Gold	Weathertight	Male Pins, Plug	Varies by Wire Gauge	Backshell	Keyed	600 V	Brass	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Plastic									0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6382-2PG-519	-40 °C	115 °C	Bayonet Lock	Free Hanging (In-Line)	2	Black	Unshielded	Gold	Weathertight	Male Pins, Plug	Varies by Wire Gauge	Backshell	Keyed	600 V	Brass	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Plastic					5.33 mm	0.21 in	0.19 in	4.83 mm
Conxall/Switchcraft 6382-2PG-311	-40 °C	115 °C	Bayonet Lock	Free Hanging (In-Line)	2	Black	Unshielded	Gold	Weathertight	Male Pins, Plug	Varies by Wire Gauge	Backshell	Keyed	600 V	Brass	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Plastic											2.29 mm	0.09 in, 0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.85
		10	$ 8.86
		25	$ 8.35
		50	$ 8.14
		100	$ 7.92
		300	$ 7.07
		500	$ 6.64
		1000	$ 5.87

Description

General part information

6382-2PG Series

2 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources
