M83-LFT1F2N60-0000-000
ActiveHarwin Inc.

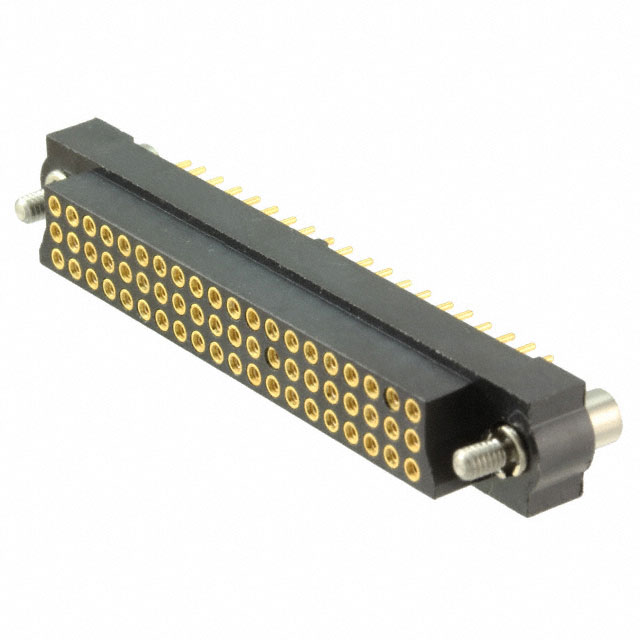

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 3 ROWS, 60 CONTACTS, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M83-LFT1F2N60-0000-000
ActiveHarwin Inc.
PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 3 ROWS, 60 CONTACTS, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83-LFT1F2N60-0000-000 |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Features | Mating Flange, Mounting Flange, Jackscrews |
| Insulation Color | Black |
| Insulation Height | 8.38 mm |
| Insulation Height | 0.33 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights [z] | 10.65 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M83-LFT1F Series
60 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
