BPJR03AUX

Active

Switchcraft Inc.

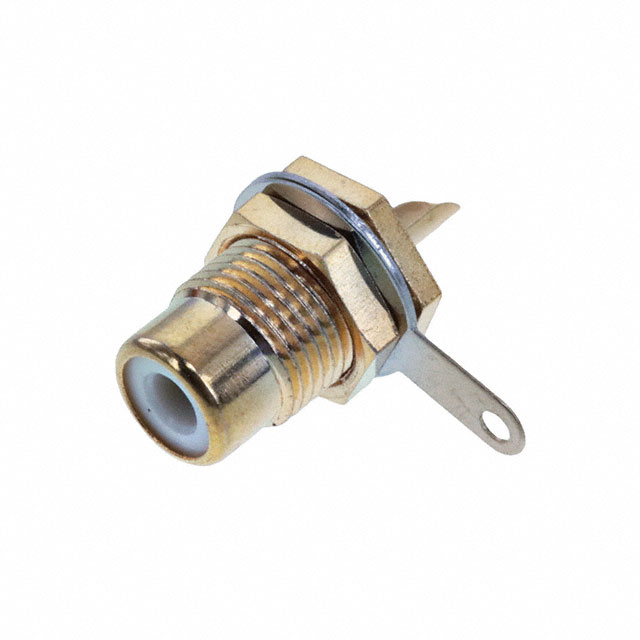

CONN RCA JACK MONO 3.2MM PNL MT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	BPJR03AUX

Actual Diameter [custom]	8.25 mm
Actual Diameter [custom]	0.134 "
Actual Diameter [custom]	3.4 mm
Actual Diameter [custom]	0.325 "
Body Color	Silver
Body Material	Brass
Connector Type	Phono (RCA) Jack
Contact Material	Brass
Contact Material - Plating [custom]	Gold
Features	Mounting Hardware, Grounding Tab
Gender	Female
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm
Insulation Color	White
Internal Switch(s)	False
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)
Thread Size	3/8"-32

CONN RCA JACK MONO 3.2MM PNL MT

Part	Connector Type	Thread Size	Features	Internal Switch(s)	Contact Material - Plating [custom]	Body Material	Includes	Industry Recognized Mating Diameter [diameter]	Contact Material	Termination	Gender	Insulation Color	Signal Lines	Panel Hole Size	Panel Hole Size	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Shielding
Switchcraft Inc. BPJR03AUX	Phono (RCA) Jack	3/8"-32	Grounding Tab, Mounting Hardware		Gold	Brass	Connector, Nut, Washer	3.2 mm, 9 mm	Brass	Solder Eyelet(s)	Female	White	Mono	0.375 in	9.52 mm	Silver	2	2	8.25 mm	0.134 "	3.4 mm	0.325 "	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
