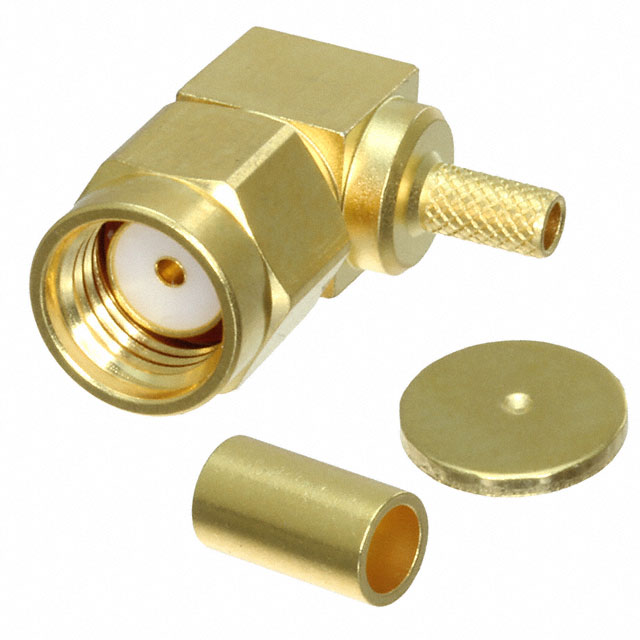

32RS247-302L5

Active

Rosenberger

CONN RP-SMA PLUG R/A 50OHM SOLDR

Search across all available documentation for this part.

Active

Rosenberger

CONN RP-SMA PLUG R/A 50OHM SOLDR

Technical Specifications

Parameters and characteristics for this part

Specification	32RS247-302L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	480 V

Part	Body Material	Connector Type	Housing Color	Shield Termination	Body Finish	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Voltage Rating	Contact Termination	Cable Group	Impedance	Frequency - Max [Max]	Center Contact Plating	Connector Style	Dielectric Material	Mounting Type	Center Contact Material
Rosenberger 32RS247-302L5	Brass	Female Socket Plug	Gold	Crimp	Gold	1	-65 ░C	165 °C	1 Connector 1 End Cap 1 Ferrule	480 V	Solder	188A 316 RG-174A	50 Ohms	12.4 GHz	Gold	RP-SMA	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 40.12

General part information

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
