M2117-3005-B

Active

RAF Electronic Hardware

4_5_MM_HEX_MALE_FEMALE_STANDOFFS

Search across all available documentation for this part.

Active

RAF Electronic Hardware

4_5_MM_HEX_MALE_FEMALE_STANDOFFS

Technical Specifications

Parameters and characteristics for this part

Part	Between Board Height	Between Board Height	Threaded/Unthreaded	Gender	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Material	Plating	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]
RAF Electronic Hardware M2117-3005-SS-20	22 mm	0.866 in	Threaded	Female Male	26.76 mm	1.054 "	M3x0.5	Stainless Steel	Passivated	Hex Standoff
RAF Electronic Hardware M2117-3005-B	22 mm	0.866 in	Threaded	Female Male	26.76 mm	1.054 "	M3x0.5	Brass		Hex Standoff	4.5 mm	0.177 in
RAF Electronic Hardware M2117-2545-SS	22 mm	0.866 in	Threaded	Female Male	25.97 mm	1.022 in	M2.5x0.45	Stainless Steel		Hex Standoff

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	232	$ 1.69

General part information

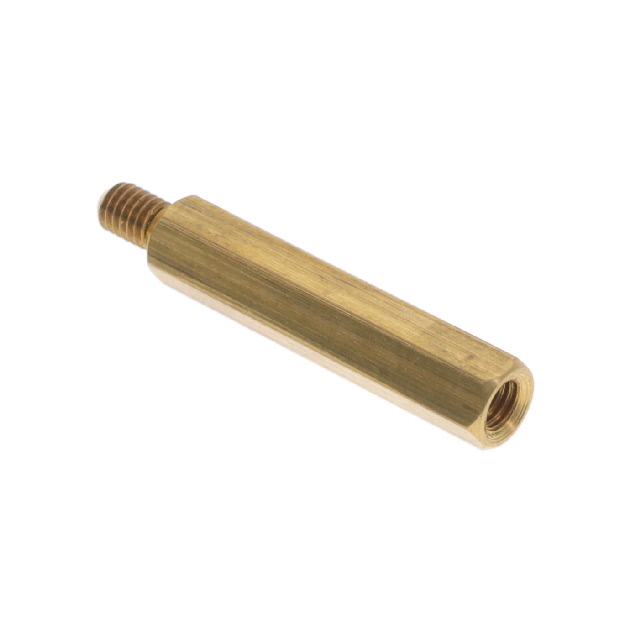

Hex Standoff Threaded M3x0.5 Brass 0.866" (22.00mm)

Technical documentation and resources

No documents available
