M50-4301545

Active

Harwin Inc.

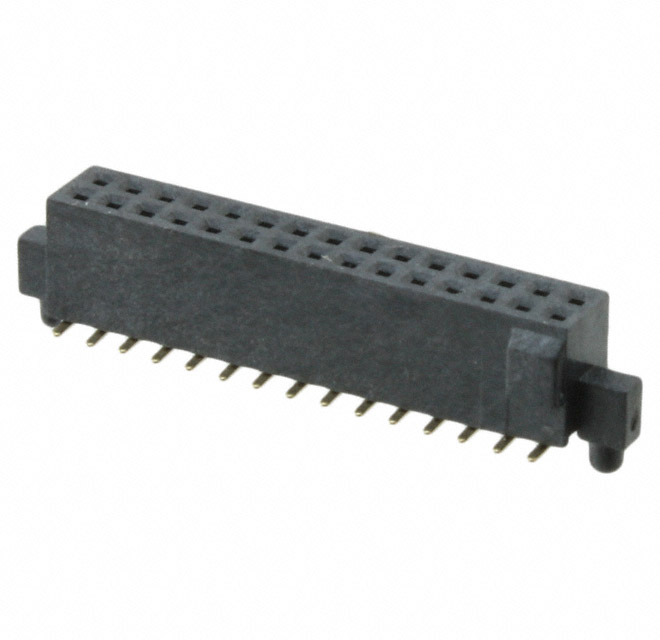

CONN, RCPT, 30POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3530842 M50-3000345 +2

M50-4301545

Active

Harwin Inc.

CONN, RCPT, 30POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3530842 M50-3000345 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-4301545

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6 mm, 6.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

M50-430 Series

Part	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Features	Applications	Material Flammability Rating	Insulation Color	Insulation Material	Mounting Type	Connector Type	Mated Stacking Heights	Contact Type	Number of Rows	Number of Positions Loaded	Number of Positions
Harwin Inc. M50-4300845	0.05 in	1.27 mm	Solder	Push-Pull	Gold	Square	4.6 mm	0.181 in	Gold	16	-40 °C	105 ░C	0.05 in	1.27 mm	Phosphor Bronze	Board Guide	General Purpose Medical Telecommunications	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	Surface Mount	Receptacle	6 mm 6.5 mm	Female Socket	2	All
Harwin Inc. M50-4301045	0.05 in	1.27 mm	Solder	Push-Pull	Gold	Square	4.6 mm	0.181 in	Gold		-40 °C	105 ░C	0.05 in	1.27 mm	Phosphor Bronze	Board Guide	General Purpose Medical Telecommunications	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	Surface Mount	Receptacle	6 mm 6.5 mm	Female Socket	2	All	20
Harwin Inc. M50-4302545	0.05 in	1.27 mm	Solder	Push-Pull	Gold	Square	4.6 mm	0.181 in	Gold		-40 °C	105 ░C	0.05 in	1.27 mm	Phosphor Bronze	Board Guide	General Purpose Medical Telecommunications	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	Surface Mount	Receptacle	6 mm 6.5 mm	Female Socket	2	All	50
Harwin Inc. M50-4301945	0.05 in	1.27 mm	Solder	Push-Pull	Gold	Square	4.6 mm	0.181 in	Gold		-40 °C	105 ░C	0.05 in	1.27 mm	Phosphor Bronze	Board Guide	General Purpose Medical Telecommunications	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	Surface Mount	Receptacle	6 mm 6.5 mm	Female Socket	2	All	38
Harwin Inc. M50-4301545	0.05 in	1.27 mm	Solder	Push-Pull	Gold	Square	4.6 mm	0.181 in	Gold		-40 °C	105 ░C	0.05 in	1.27 mm	Phosphor Bronze	Board Guide	General Purpose Medical Telecommunications	UL94 V-0	Black	Liquid Crystal Polymer (LCP)	Surface Mount	Receptacle	6 mm 6.5 mm	Female Socket	2	All	30

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.34
		26	$ 4.59
		104	$ 4.27
		520	$ 3.63
		1014	$ 3.10
Newark	Each	1	$ 4.83
		10	$ 4.22
		25	$ 3.62
		50	$ 3.48
		100	$ 3.34
		250	$ 3.20
		500	$ 2.98
		1000	$ 2.77

Description

General part information

M50-430 Series

30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
