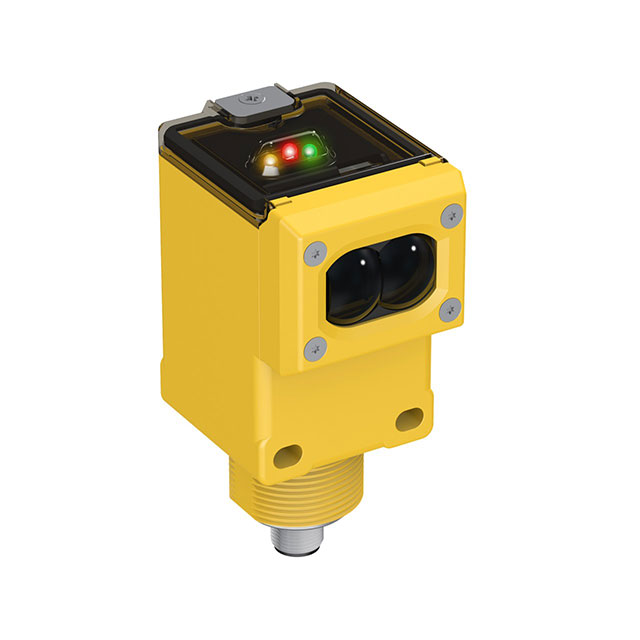

Q45AD9LPQ

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, 19.68FT, 680NM RED LED, POLARIZED RETROREFLECTIVE, DIGITAL, 4PIN M12 CONNECTOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, 19.68FT, 680NM RED LED, POLARIZED RETROREFLECTIVE, DIGITAL, 4PIN M12 CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Connection Method	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source
BANNER ENGINEERING Q45AD9LPQ	236.22 in	6 m	Analog	-40 °C	70 °C	Polarized Retroreflective	Connector	IP67 NEMA 6P	5 V	15 V	Red
BANNER ENGINEERING Q45AD9FVQ				-40 °C	70 °C		Connector	NEMA 6P IEC IP67	5 V	15 V	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 181.00
Newark	Each	1	$ 184.00

General part information

Retroreflective, Polarized Optical Sensor 236.22" (6m) Analog
