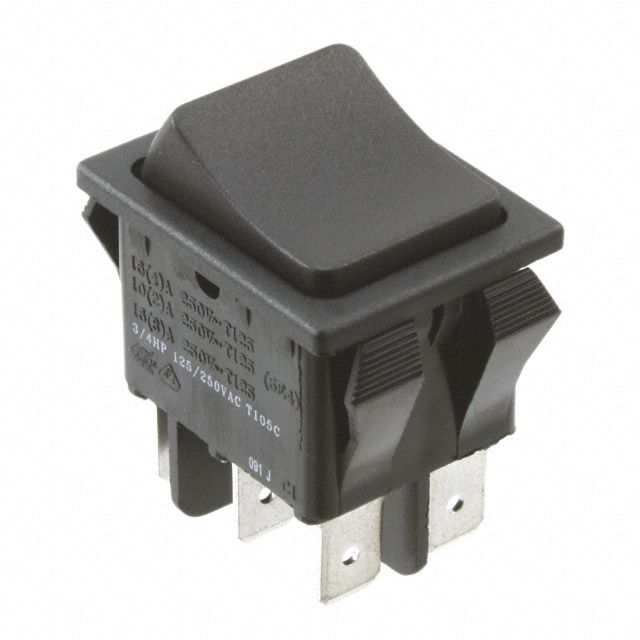

RB24GD1100

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Circuit	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Electrical Life	Color - Actuator/Cap	Actuator Marking	Features	Current Rating (Amps)	Actuator Type	Ingress Protection	Switch Function
E-Switch RB24GD1100/ACC-F02-1	125 V	DPDT	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Panel Mount Snap-In	10000 Cycles	Black	No Marking	Sealing Boot	20 A	Concave (Curved)	IP54 - Dust Protected Water Resistant	On-On
E-Switch RB24GD1100	125 V	DPDT	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Panel Mount Snap-In	10000 Cycles	Black	No Marking		20 A	Concave (Curved)		On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
