1MF26-L586-00C-100

Active

JE150347100 1MF26-L586-00C-100=ASSY SDR>MDR

Search across all available documentation for this part.

Active

JE150347100 1MF26-L586-00C-100=ASSY SDR>MDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 107.43

General part information

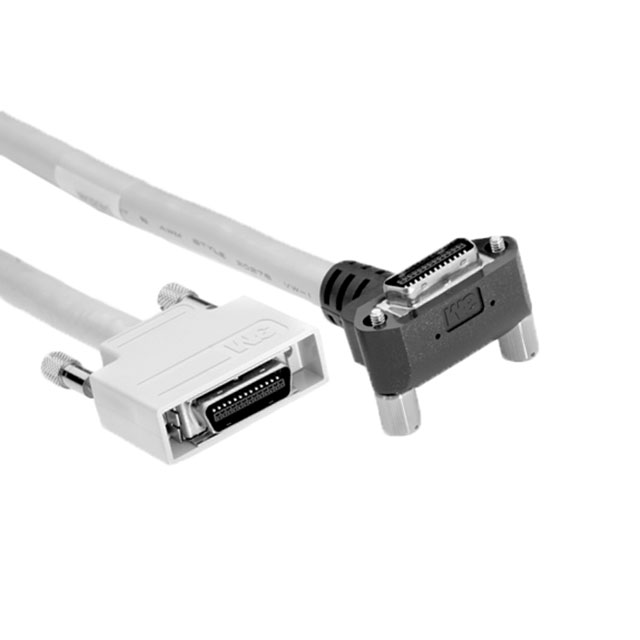

Centronics 26 pos Male to Male, Right Angle Assembly 3.28' (1.00m) Round, Beige

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1MF26-L586-00C-100	1MF26 Series

Cable Type	Round, Beige	Round, Beige
Configuration	Centronics 26 pos Male to Male, Right Angle	Centronics 26 pos Male to Male, Right Angle, Centronics 26 pos Male to Male
Length [x]	1 m	1 - 10 m
Length [x]	3.28 ft	3.28 - 32.81 ft
Shielding	Shielded	Shielded
Style	Bidirectional	Bidirectional

JE150347100 1MF26-L586-00C-100=ASSY SDR>MDR

Part	Shielding	Length [x]	Length [x]	Cable Type	Style	Configuration
3M 1MF26-L586-00C-100	Shielded	1 m	3.28 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L577-00C-500	Shielded			Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L587-00C-500	Shielded			Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L576-00C-100	Shielded	1 m	3.28 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L586-00C-200	Shielded	2 m	6.56 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L577-00C-100	Shielded	1 m	3.28 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L560-00C-A00	Shielded	10 m	32.81 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male
3M 1MF26-L576-00C-200	Shielded	2 m	6.56 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L587-00C-A00	Shielded	10 m	32.81 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male, Right Angle
3M 1MF26-L560-00C-200	Shielded	2 m	6.56 ft	Round, Beige	Bidirectional	Centronics 26 pos Male to Male
